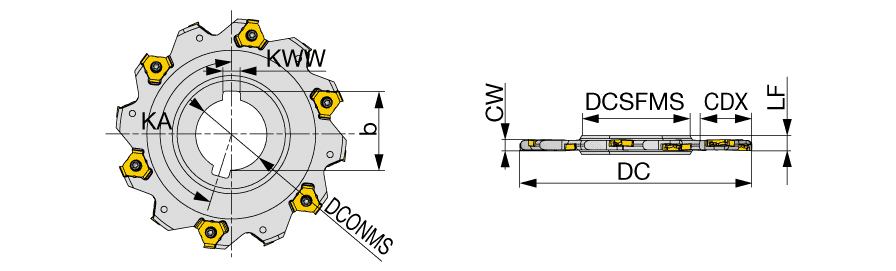

| Cutting Diameter (DC) | 6″ | Overall Length (OAL) | 0.475″ |
| Cutting Item Count (CICT) | 16 | Master Insert Identification (MIID) | TVKX0504** |
| Peripheral Effective Cutting Edge Count (ZEFP) | 8 | Application | | Slot Milling | |
| Cutting Depth Maximum (CDX) | 1.76″ | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Hub Thickness (THUB) | 0.475″ | Body Material | Steel |
| Cutting Width (CW) | 0.313″ | Unit | I |
Product Features
| Family Description | Axial drive type slot milling cutter with tangentially mounted inserts | FamilyName | ASV |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
2.7227
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
ASV
BrandName
Tungaloy
