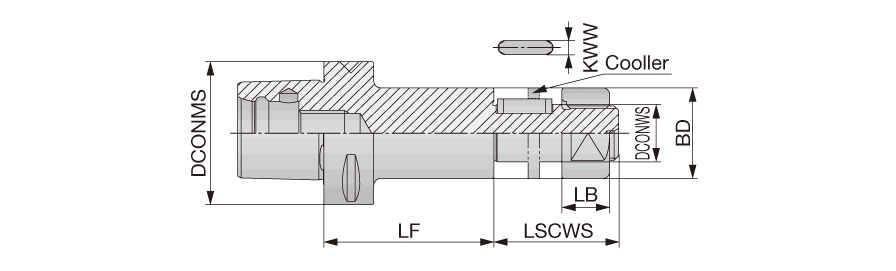

| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 31.75 mm | Body Material | Steel |
| Body Diameter (BD) | 46 mm | Functional Length (LF) | 75 mm |
| Body Length (LB) | 26 mm | Clamping Length Workpiece Side (LSCWS) | 60 mm |
| Application | | Face contact interface | | Key Width | 7.92 mm |
| Tool Type | ISO 26623-1 (CAMFIX, CAPTO) | Unit | M |
Product Features
| Family Description | TungCap Slot milling holders | FamilyName | C-SCA |
| Remarks | Collars for slot mills are not included. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
2.0400
Name
Rotating Indexable Body for Slotting Cutters
FamilyName
C-SCA
BrandName
Tungaloy
