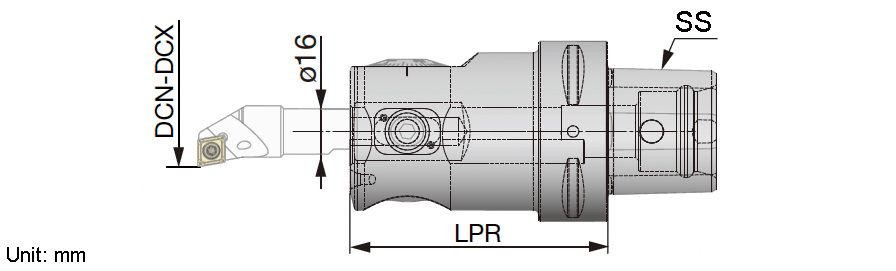

| Application | | SwissBore tools | | Measurement Type | Metric |
| Cutting Diameter Minimum (DCN) | 9.75 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 88.1 mm | Unit | M |
| Functional Length (LF) | 65 mm |
Product Features

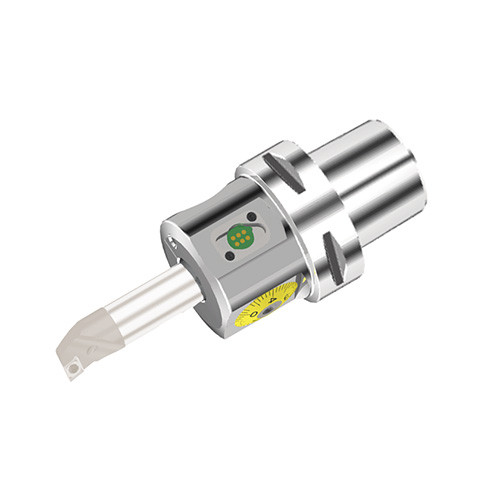

| Family Description | Digital Fine boring heads for dia 9.75 - 88.1 mm | COO | SWITZERLAND |
| Remarks | DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder. For DCN and DCX, click on "More Info". Boring bars should be ordered individualy. Radius adjustment range: 2.7 mm Applicable for 3 MPa pressure coolant. |
Shipping Info
Weight per item
0.9200
Related Documentation

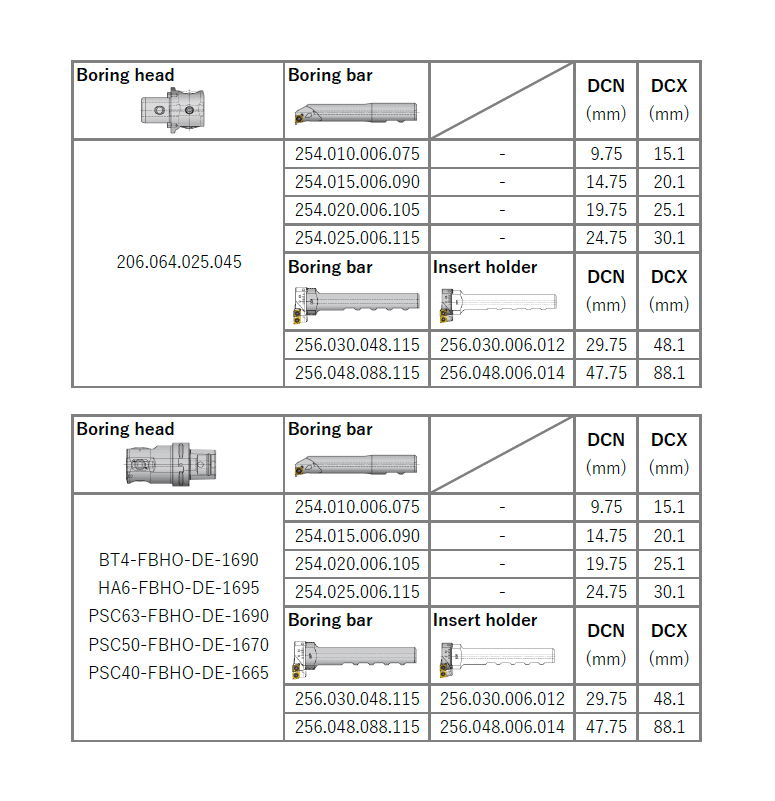

DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder.
