TZP12063R

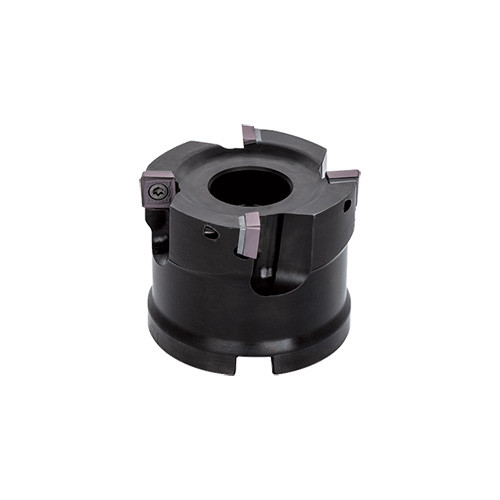

Z-feed plunging cutter for roughing operation with screw clamp
| Application | | Profile Milling | | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 63 mm | Measurement Type | Metric |
| Cutting Item Count (CICT) | 3 | Tool Type | Plungers cutters |
| Depth of Cut Maximum (APMX) | 0.5 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Unit | M |
| Overall Length (OAL) | 50 mm |
Product Features
| Family Description | Z-feed plunging cutter for roughing operation with screw clamp | FamilyName | TZP12 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.9400
Name
Plunge Mills
FamilyName
TZP12
BrandName
Tungaloy
