HSV02R050S10-03W4.0C
Slot mill for tangentially mounted inserts, with TungMeister connection
Price: Log in For Price

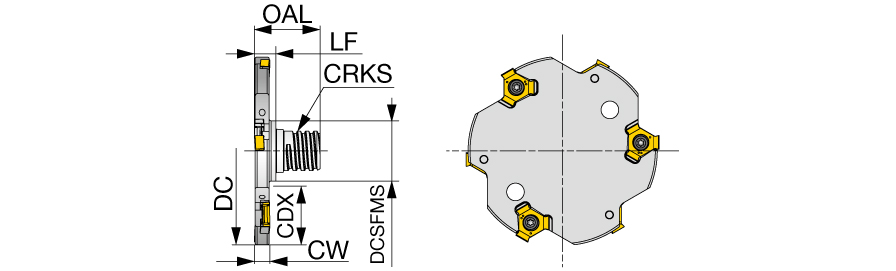

| Cutting Diameter (DC) | 50 mm | Measurement Type | Metric |
| Cutting Width (CW) | 4 mm | Tool Type | Double-sided slotting cutters |
| Cutting Depth Maximum (CDX) | 16.3 mm | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 | Cutting Item Count (CICT) | 6 |
| Connection Thread Nominal Size Machine Side (THSZMS) | S10 | Functional Length (LF) | 5.5 mm |
| Overall Length (OAL) | 16.8 mm | Master Insert Identification (MIID) | TVKX020202TN-MJ |
| Application | | Slot Milling | | Unit | M |
Product Features
| Family Description | Slot mill for tangentially mounted inserts, with TungMeister connection | FamilyName | HSV-S |
| Remarks | For how to assemble the inserts to the cutter body and how to assemble the cutter body to the shank, click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Disc w/Shank Indexable Slotting Cutters
FamilyName
HSV-S
BrandName
Tungaloy
Related Documentation
[Assembling the inserts] @Always use the right-hand screws for the right hand pockets and left-hand screws for the left-hand pockets. @To loosen the left-hand screw, rotate in the opposite direction to the arrow etched on the cutter body. @[Modular head] @(1) Insert the pins to the holes on the cutter body. @(2) Grip the handle and rotate to clamp. A hex torque wrench may be used as an alternative torque method. In this case, insert the Allen key in the hexagonal hole on the dedicated wrench and rotate.
