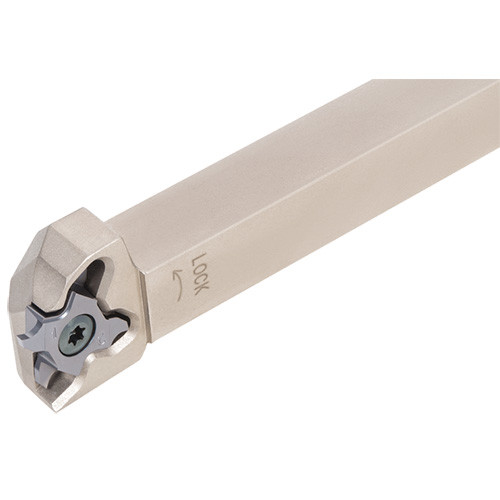

STCL16-18
Precision external grooving and threading tools with uniquely shaped insert for Swiss-tooling or Automatic lathes

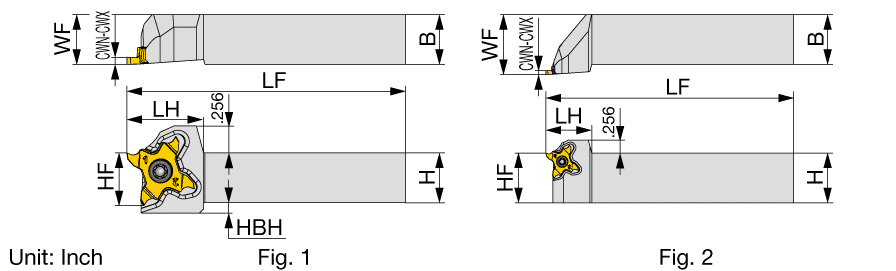

| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.013″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.236″ |
| Cutting Width Maximum (CWX) | 1/8″ | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 5-1/2″ | Measurement Type | Inch |
| Head Length (LH) | 0.9″ | Insert Seat Size Code (SSC) | 18 |
| Cutting Depth Maximum (CDX) | 0.138″ | Functional Width (WF) | 1-1/4″ |
| Overall Height (OAH) | 1″ | Tool Assembly Length (LTA) | 1.294″ |
| Application | | Ext Threading | External grooving | | Unit | I |
Product Features
| Family Description | Precision external grooving and threading tools with uniquely shaped insert for Swiss-tooling or Automatic lathes | FamilyName | STCR/L-18 |
| Remarks | The right hand insert (TC*18R***) is used for the right hand toolholders (STCR***), and the left hand insert (TC*18L***) is used for the left hand toolholders (STCL***). Torque: Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.6182
Name
Parting Off Indexable Holders
FamilyName
STCR/L-18
BrandName
Tungaloy
