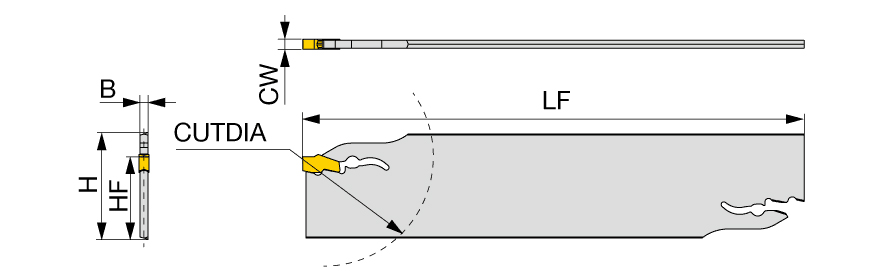

| Shank Height (H) | 1.26″ | Body Material | Steel |
| Shank Width (B) | 0.094″ | Tool Type | Blades and adapters for Parting & Grooving |
| Body Width (WB) | 0.094″ | Work Piece Parting Diameter Maximum (CUTDIA) | 4.724″ |
| Cutting Width Minimum (CWN) | 0.098″ | Cutting Direction (HAND) | Neutral |
| Cutting Width Maximum (CWX) | 0.137″ | Measurement Type | Inch |
| Overall Length (OAL) | 5.945″ | Insert Seat Size Code (SSC) | 3 |
| Cutting Depth Maximum (CDX) | 2.362″ | Functional Width (WF) | 0.118″ |
| Overall Height (OAH) | 0.976″ | Unit | I |
| Application | | External grooving | Parting off | |
Product Features

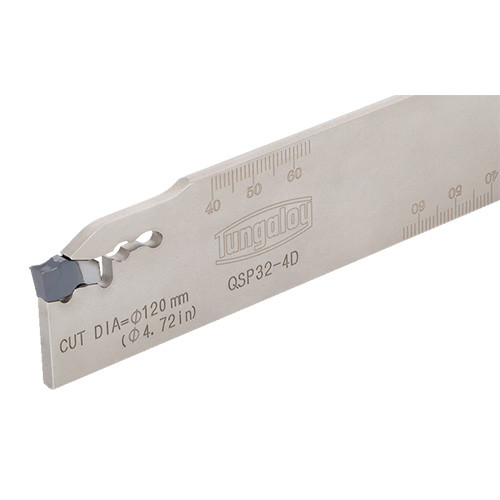

| Family Description | Blade for external deep grooving and parting | FamilyName | QSP |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Parting Off Indexable Holders
FamilyName
QSP
BrandName
Tungaloy
