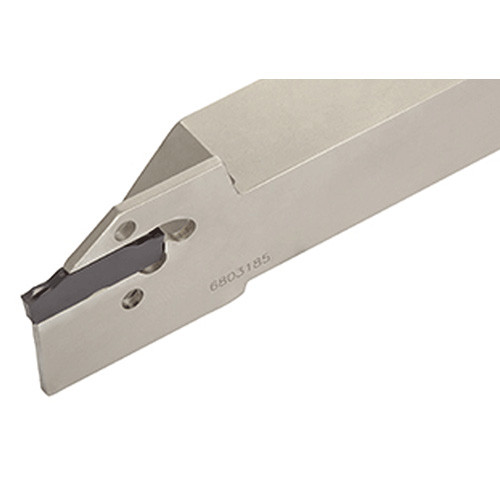

CGER1616-2T17
External deep grooving & parting toolholders for small lathe

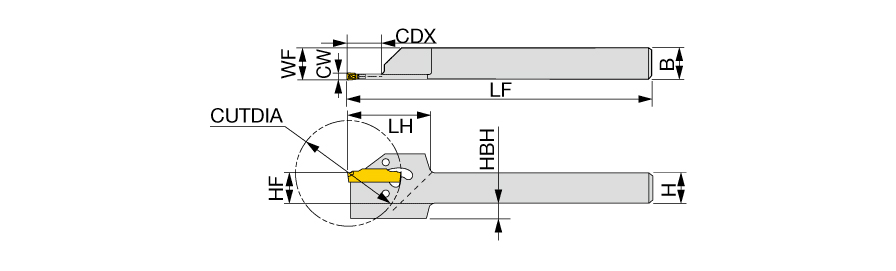

| Shank Height (H) | 16 mm | Body Material | Steel |
| Shank Width (B) | 16 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 1.5 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 35 mm |
| Cutting Width Maximum (CWX) | 2.49 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 150 mm | Measurement Type | Metric |
| Head Length (LH) | 31 mm | Insert Seat Size Code (SSC) | 2 |
| Cutting Depth Maximum (CDX) | 17.5 mm | Functional Width (WF) | 16.1 mm |
| Overall Height (OAH) | 16 mm | Tool Assembly Length (LTA) | 41 mm |
| Application | | External grooving | Parting off | | Unit | M |
Product Features
| Family Description | External deep grooving & parting toolholders for small lathe | FamilyName | CGER/L |

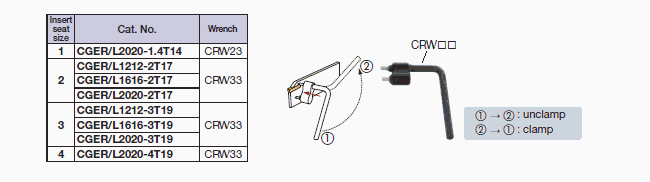

| Remarks | See applicable inserts table. Wrench, CRW**, should be ordered separately. Insert is clamped by the elastic deformation of upper jaw. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.2860
Name
Parting Off Indexable Holders
FamilyName
CGER/L
BrandName
Tungaloy
