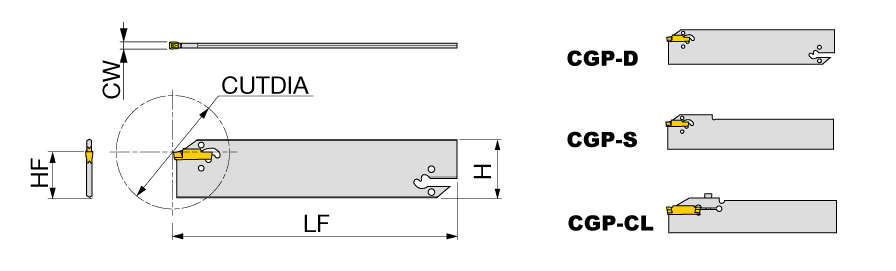

| Shank Height (H) | 1.024″ | Body Material | Steel |
| Shank Width (B) | 0.094″ | Tool Type | Blades and adapters for Parting & Grooving |
| Body Width (WB) | 0.094″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.969″ |
| Cutting Width Minimum (CWN) | 0.098″ | Cutting Direction (HAND) | Neutral |
| Cutting Width Maximum (CWX) | 0.137″ | Measurement Type | Inch |
| Overall Length (OAL) | 5.906″ | Insert Seat Size Code (SSC) | 3 |
| Cutting Depth Maximum (CDX) | 0.984″ | Functional Width (WF) | 0.118″ |
| Overall Height (OAH) | 0.843″ | Tool Assembly Length (LTA) | 1.306″ |
| Application | | External grooving | Parting off | | Unit | I |
Product Features
| Family Description | Blades for external deep grooving & parting | FamilyName | CGP |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1918
Name
Parting Off Indexable Holders
FamilyName
CGP
BrandName
Tungaloy
Related Documentation

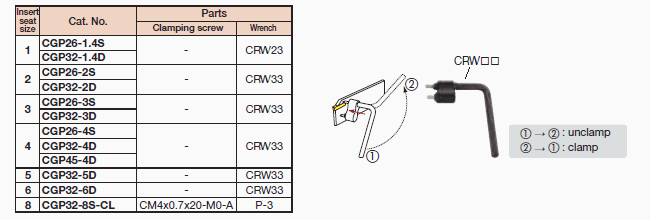

Please use single-sided inserts (e.g. SGM, SGS) in the case of grooving depth is deeper than insert length - 1.5 mm. @Wrench CRW**, should be ordered separately for CGP**-1.4S/D, -2S/D, -3S/D, -4S/D, -5D and -6D.
