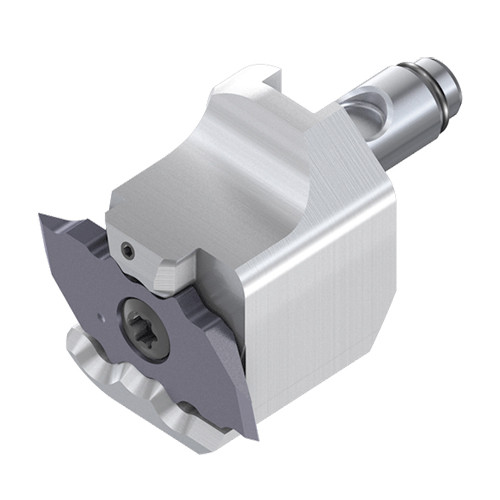

QR12E-SXXL09-CHP
Modular head for external threading and grooving, with high pressure coolant capability, for round shanks

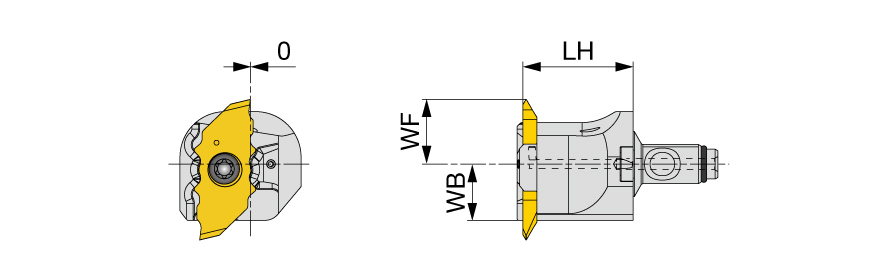

| Overall Length (OAL) | 0.783″ | Head Length (LH) | 0.768″ |
| Cutting Direction (HAND) | Left Hand | Body Material | Steel |
| Application | | Ext Threading | External grooving | For Miniature machining | | Measurement Type | Inch |
| Tool Type | External Non-Rotating Threading Tools | Unit | I |
Product Features
| Family Description | Modular head for external threading and grooving, with high pressure coolant capability, for round shanks | FamilyName | QR12-SXXL-CHP |
| Remarks | Use left hand toolholders (L) with right hand inserts (R). WF (Functional Width) values shown above are true with JX**16... insert. WF will be 2 mm shorter than the above value with JX**12... insert; 4 mm shorter with JX**06... insert; 2 mm longer with JX**20... insert. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
On-Edge Threading Indexable Holders
FamilyName
QR12-SXXL-CHP
BrandName
Tungaloy
