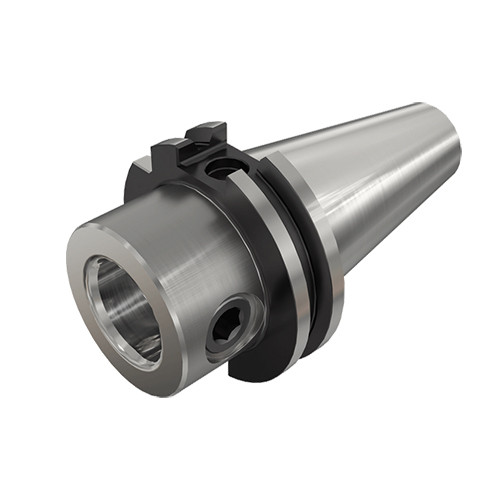

DIN6987140CF4-S

TungFit quick change style modular tooling system with DIN69871 shank

Item # TUN4548020

Brand: Tungaloy

Mfr#: 4548020

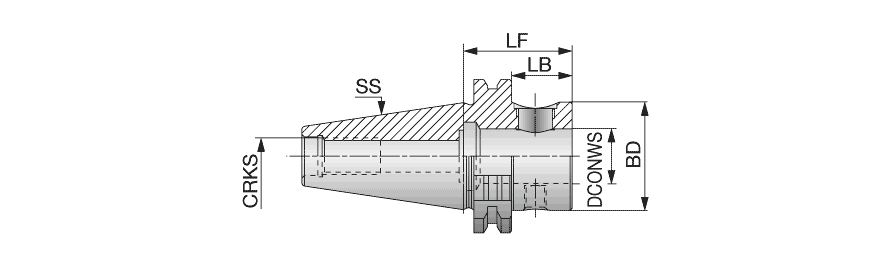

Shank Size (SS)	40.	Tool Type	DIN 69871
Body Length (LB)	25 mm	Overall Length (OAL)	44.1 mm
Body Diameter (BD)	44.5 mm	Measurement Type	Metric
Application	\| Tapered shape interface \|	Body Material	Steel
Connection Diameter Workpiece Side (DCONWS)	25 mm	Unit	M
Connection Retention Knob Thread Size (CRKS)	M16

Product Features

Family Description	TungFit quick change style modular tooling system with DIN69871 shank	FamilyName	DIN69871-CF (TungFit)
Remarks	Tightening torque: 58.8 Nm Add B for coolant through the flange.	BrandName	Tungaloy
COO	ISRAEL

Weight per item

1.1840

Name

Drill Chucks & Adapters

FamilyName

DIN69871-CF (TungFit)

BrandName

Tungaloy
