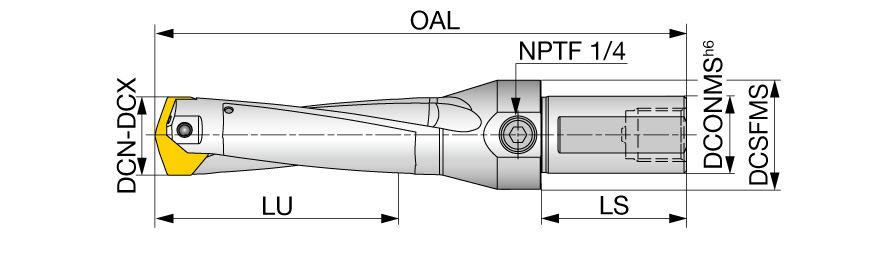

| Usable Length (LU) | 3.23″ | Shank Length (LS) | 2.362″ |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | DRILL - L/D = 3 | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Master Insert Identification (MIID) | SMP260 |
| Insert Seat Size Code (SSC) | 26 | Point Length (PL) | 0.186″ |
| Cutting Diameter Minimum (DCN) | 1.024″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 1.059″ | Flange Diameter (DF) | 1.772″ |
| Overall Length (OAL) | 7.677″ | Unit | I |
Product Features

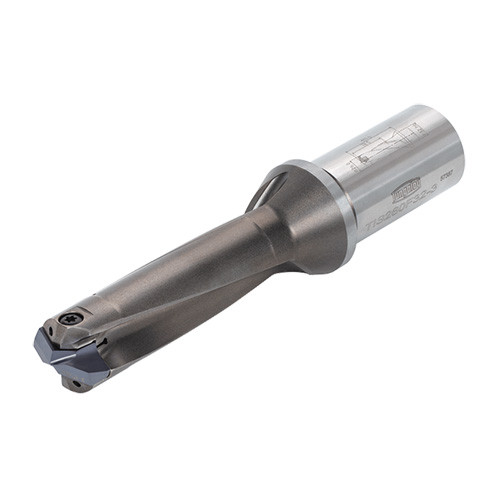

| Family Description | DrillForceMeister TIS L/D=3 Indexable head drill | COO | SOUTH KOREA |
| Remarks | Note: An overall length (OAL) differs based on each head geometry. |
Shipping Info
Weight per item
2.1319
