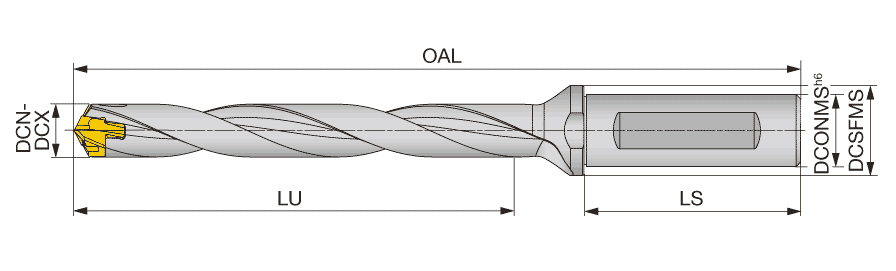

| Usable Length (LU) | 8.053″ | Shank Length (LS) | 2.362″ |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | indexable head drills | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Master Insert Identification (MIID) | DMP250 |
| Insert Seat Size Code (SSC) | 25 | Point Length (PL) | 0.15″ |
| Cutting Diameter Minimum (DCN) | 0.984″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 1.02″ | Flange Diameter (DF) | 1.654″ |
| Overall Length (OAL) | 11.791″ | Unit | I |
Product Features

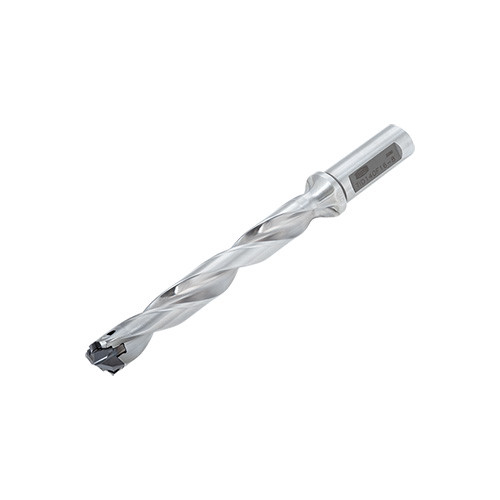

| Family Description | DrillMeister Indexable head drill with flanged shank | COO | SOUTH KOREA |
| Remarks | Note: An overall length depends on the type of drill head which is mounted on. |
