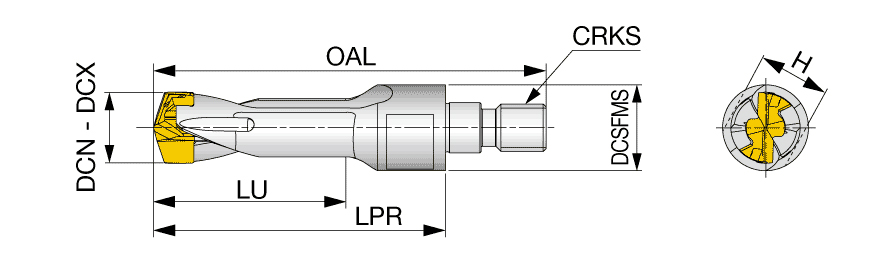

| Usable Length (LU) | 1.22″ | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | General Drilling | | Measurement Type | Inch |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | DMP140 |
| Insert Seat Size Code (SSC) | 14 | Point Length (PL) | 0.083″ |
| Cutting Diameter Minimum (DCN) | 0.5512″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.5669″ | Flange Diameter (DF) | 0.709″ |
| Overall Length (OAL) | 2.801″ | Unit | I |
| Shank Length (LS) | 0.748″ |
Product Features

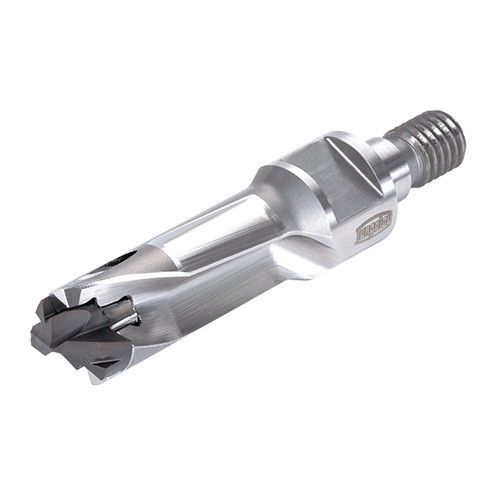

| Family Description | DrillMeister Modular body with TungFlex connection | COO | JAPAN |
Shipping Info
Weight per item
0.0000
