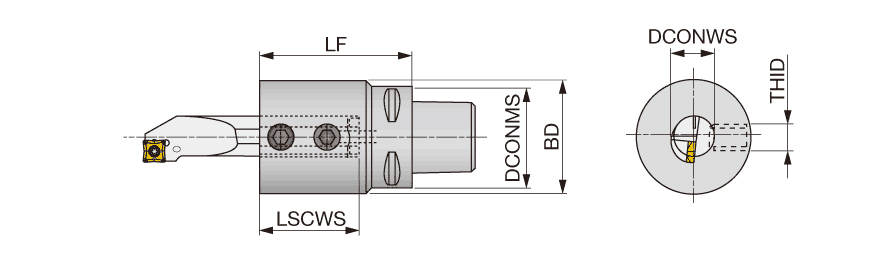

| Connection Diameter Machine Side (DCONMS) | 63 mm | Application | | Face contact interface | |
| Protruding Length (LPR) | 115 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Clamping Length Workpiece Side (LSCWS) | 86 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 50 mm | Body Material | Steel |
| Body Diameter (BD) | 98 mm | Unit | M |
Product Features
| Family Description | TungCap adapter for boring bars | COO | ISRAEL |
| Remarks | Applicable for 7 MPa coolant |
Shipping Info
Weight per item
5.0000
