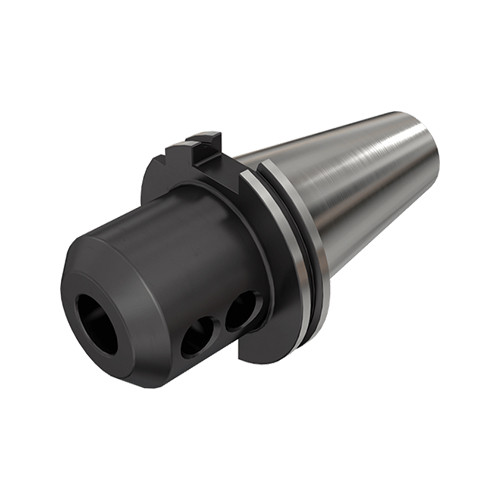

DIN6987150EM20X63E
Screw locking endmill holders for whistle notch with DIN69871 shank

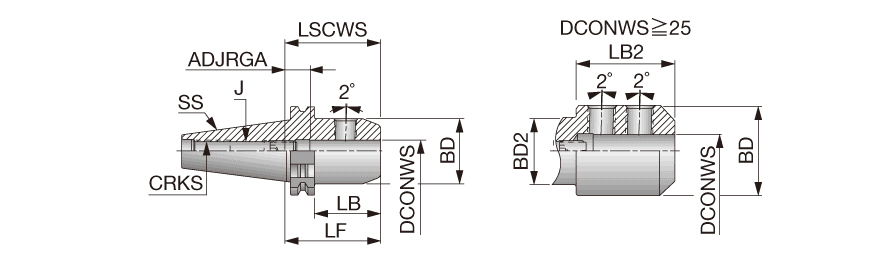

| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Shank Size (SS) | 50. |
| Body Diameter (BD) | 52 mm | Tool Type | DIN 69871 |
| Overall Length (OAL) | 63 mm | Body Length (LB) | 43.9 mm |
| Application | | Tapered shape interface | | Body Material | Steel |
| Measurement Type | Metric | Unit | M |
| Connection Retention Knob Thread Size (CRKS) | M24 |
Product Features
| Family Description | Screw locking endmill holders for whistle notch with DIN69871 shank | FamilyName | DIN69871-EM E(whistle notch) |
| Remarks | Add B for coolant through the flange. | BrandName | Tungaloy |
| COO | ITALY |
Shipping Info
Weight per item
0.0000
Name
End Mill Holders
FamilyName
DIN69871-EM E(whistle notch)
BrandName
Tungaloy
