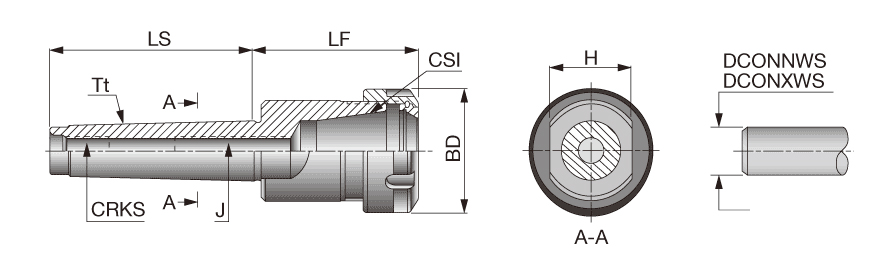

| Shank Size (SS) | MT 4 | Tool Type | Morse Taper |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Diameter (BD) | 50 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Shank Length (LS) | 102.5 mm | Measurement Type | Metric |
| Functional Length (LF) | 60.5 mm | Body Material | Steel |
| Application | | Tapered shape interface | | Unit | M |
Product Features

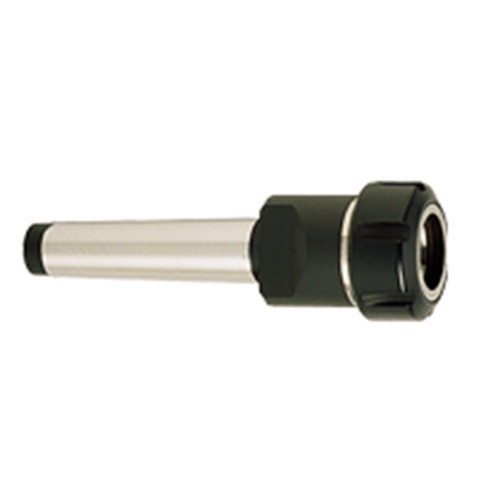

| Family Description | ER collet chuck holder with Morse Taper | FamilyName | MT-ER (collet chuck) |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.8060
Name
Collet Chucks
FamilyName
MT-ER (collet chuck)
BrandName
Tungaloy
