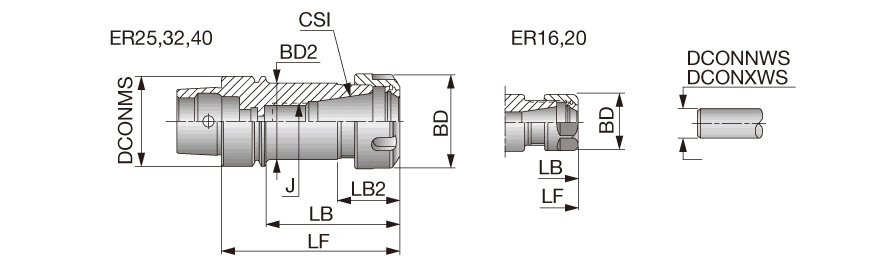

| Shank Size (SS) | HSK E 63 | Application | | Face contact interface | |
| Connection Size (CSI) | ER40 | Tool Type | HSK |
| Body Diameter (BD) | 2.48″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.118″ |
| Body Length (LB) | 2.126″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.024″ |
| Body Length_2 (LB_2) | 1.339″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Shank Length (LS) | 1.26″ | Unit | I |
| Functional Length (LF) | 3.15″ |
Product Features
| Family Description | ER collet chucks with HSK-E shank | FamilyName | HSK E-ER (collet chuck) |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Collet Chucks
FamilyName
HSK E-ER (collet chuck)
BrandName
Tungaloy
