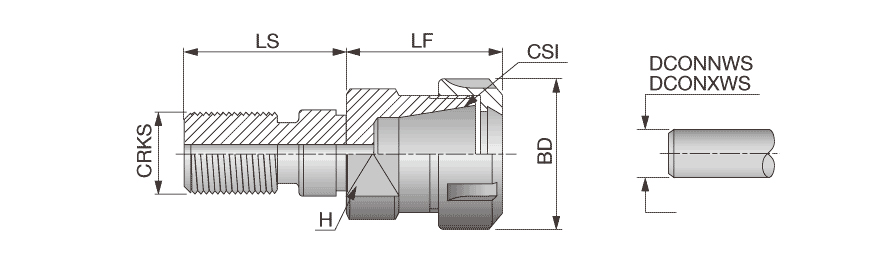

| Connection Size (CSI) | ER20 | Tool Type | Interchangeable Milling Connectors |
| Body Diameter (BD) | 34 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Length (LB) | 45.5 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Shank Length (LS) | 25 mm | Measurement Type | Metric |
| Functional Length (LF) | 45.5 mm | Body Material | Steel |
| Application | | Straight shape | | Unit | M |
Product Features

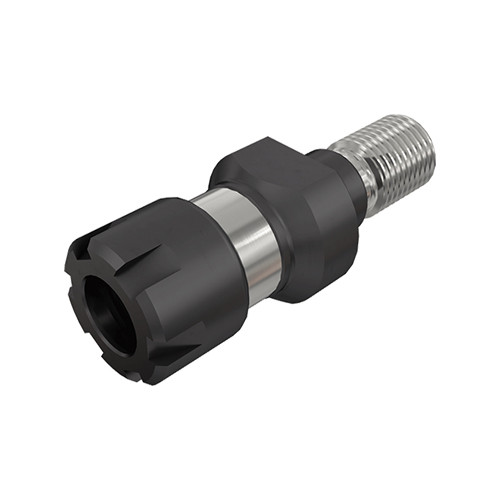

| Family Description | TungFlex adapter with ER collet chucks | FamilyName | CDP-ER-M collet chuck |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.2110
Name
Collet Chucks
FamilyName
CDP-ER-M collet chuck
BrandName
Tungaloy
