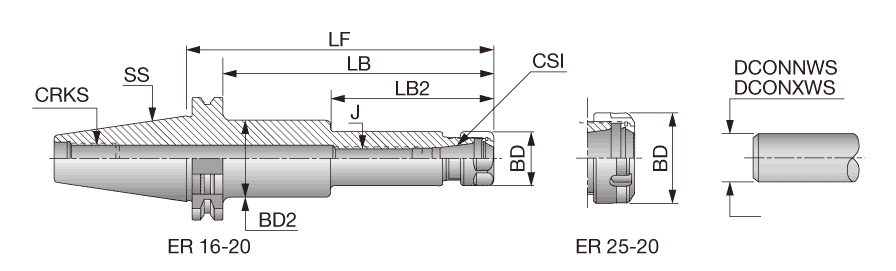

| Shank Size (SS) | SK50 | Application | | Tapered shape interface | |
| Connection Size (CSI) | ER16 | Tool Type | DIN 69871 |
| Body Diameter (BD) | 28 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Body Diameter_3 (BD_3) | 40 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Body Length (LB) | 180.9 mm | Measurement Type | Metric |
| Body Length_2 (LB_2) | 110 mm | Body Material | Steel |
| Shank Length (LS) | 101.8 mm | Unit | M |
| Functional Length (LF) | 200 mm |
Product Features

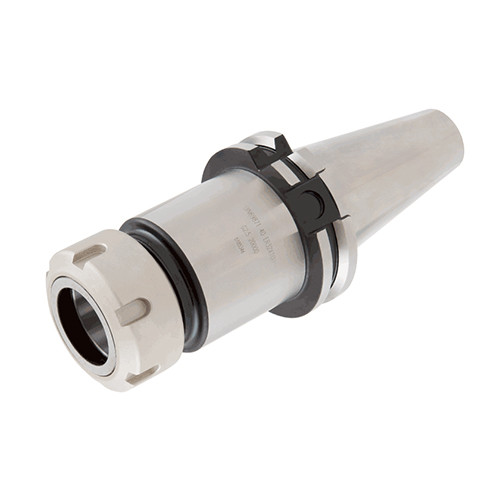

| Family Description | ER collet chucks with DIN69871 shank | FamilyName | DIN69871-ER (collet chuck) |
| Remarks | Add B for coolant through the flange. | BrandName | Tungaloy |
| COO | TURKEY |
Shipping Info
Weight per item
3.8000
Name
Collet Chucks
FamilyName
DIN69871-ER (collet chuck)
BrandName
Tungaloy
