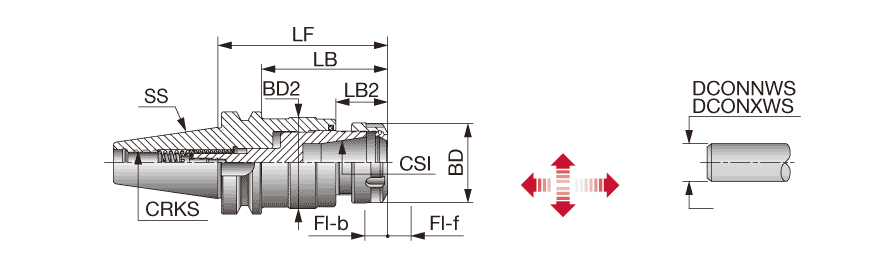

| Shank Size (SS) | BT40 | Tool Type | BT |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Body Diameter (BD) | 1.969″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Body Diameter_3 (BD_3) | 2.224″ | Tap Max | M20 |
| Body Length (LB) | 3.142″ | Tap Min | M6 |
| Body Length_2 (LB_2) | 1.299″ | Measurement Type | Inch |
| Shank Length (LS) | 2.575″ | Body Material | Steel |
| Functional Length (LF) | 4.205″ | Unit | I |
| Application | | Tapered shape interface | |
Product Features

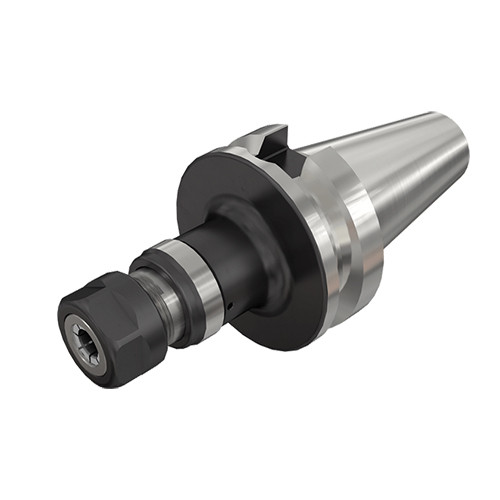

| Family Description | GTIN ER tapping collet | FamilyName | GTI-BT (tapping attachment) |
| Remarks | Wrench is not included. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
4.4136
Name
Collet Chucks
FamilyName
GTI-BT (tapping attachment)
BrandName
Tungaloy
Related Documentation
[Operation] @For through- and blind-hole tapping: @(1) Enter feed rate according to thread pitch (or 1-2 % lower). Set spindle to starting point with 0.08 mm clearance. @(2) Start spindle forward with right hand rotation until reaching desired depth. @(3) Stop feed and rotation and reverse to starting point.
