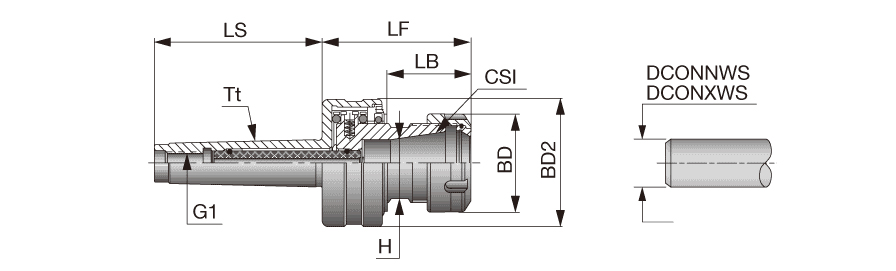

| Shank Size (SS) | MT 3 | Tool Type | Morse Taper |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Diameter (BD) | 50 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Length (LB) | 45.9 mm | Measurement Type | Metric |
| Shank Length (LS) | 81 mm | Body Material | Steel |
| Functional Length (LF) | 81.9 mm | Unit | M |
| Application | | Tapered shape interface | |
Product Features

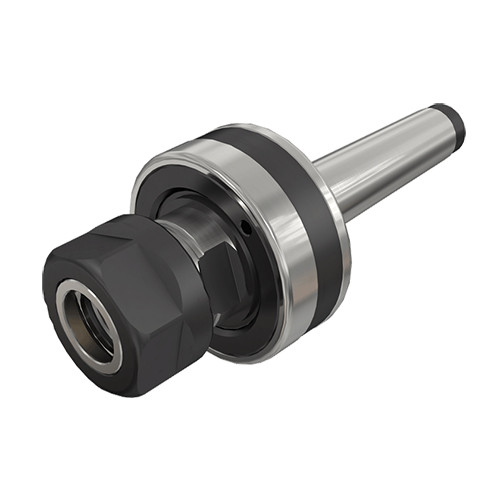

| Family Description | Floating Reamer DIN 6499 Collet Chucks with Morse Tapered Shanks | FamilyName | GFI-MT-ER(reamer chuck) |
| Remarks | Maximum 2000 min 1 | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
1.2360
Name
Collet Chucks
FamilyName
GFI-MT-ER(reamer chuck)
BrandName
Tungaloy
