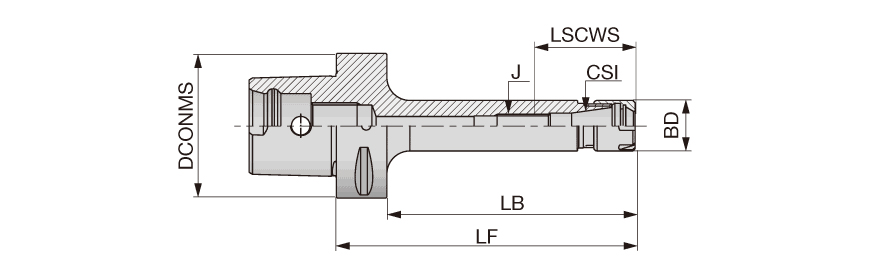

| Shank Size (SS) | C6 | Application | | Face contact interface | |
| Connection Size (CSI) | ER16 | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Diameter (BD) | 0.866″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.02″ |
| Body Length (LB) | 5.433″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.394″ |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Measurement Type | Inch |
| Shank Length (LS) | 1.496″ | Body Material | Steel |
| Functional Length (LF) | 6.299″ | Unit | I |
Product Features

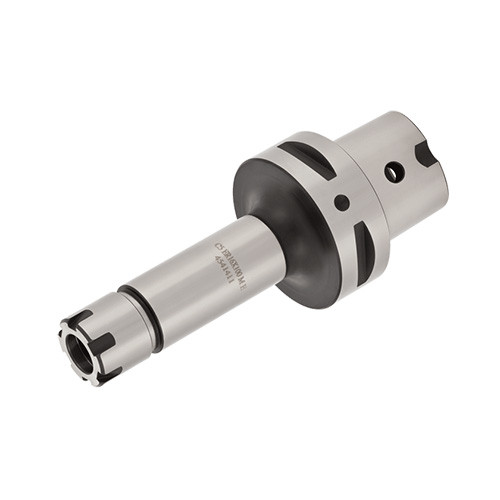

| Family Description | TungCap mini ER collet chucks holders (DIN 6499) | FamilyName | C-ER-M collet chuck |
| Remarks | Applicable for 7 MPa coolant. Wrench is not included | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
2.5089
Name
Collet Chucks
FamilyName
C-ER-M collet chuck
BrandName
Tungaloy
