CAT40FCSEM3/4X1.375C

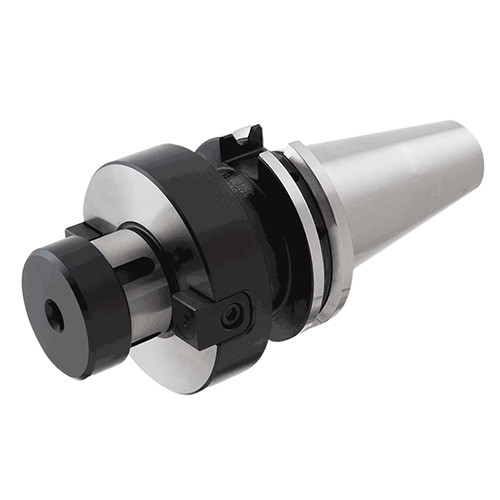

Shell mill holder with coolant hole and Caterpillar face contact AD tapered shank.
Price: Log in For Price

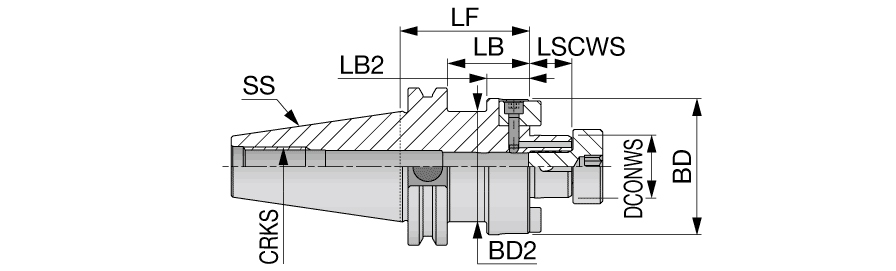

| Connection Diameter Workpiece Side (DCONWS) | 3/4″ | Application | | Tapered shape interface | |
| Shank Size (SS) | CAT40-FC | Tool Type | Caterpillar |
| Body Length (LB) | 5/8″ | Measurement Type | Inch |
| Body Diameter (BD) | 1.752″ | Body Material | Steel |
| Overall Length (OAL) | 1-3/8″ | Unit | I |
| Connection Retention Knob Thread Size (CRKS) | 5/8-11 |
Product Features
| Family Description | Shell mill holder with coolant hole and Caterpillar face contact AD tapered shank. | FamilyName | CAT-FC-SEM-C |
| Remarks | Applicable for 7 MPa coolant. | BrandName | Tungaloy |
| COO | ITALY |
Shipping Info
Weight per item
0.0000
Name
Shell Mill Holders
FamilyName
CAT-FC-SEM-C
BrandName
Tungaloy
