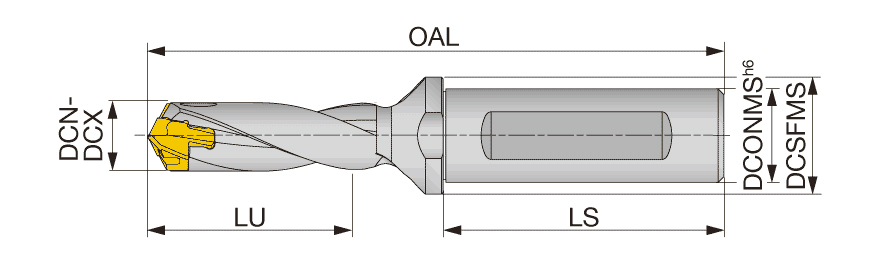

| Usable Length (LU) | 0.748″ | Shank Length (LS) | 1.772″ |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | indexable head drills | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.472″ | Master Insert Identification (MIID) | DMP060 |
| Insert Seat Size Code (SSC) | 6 | Point Length (PL) | 0.043″ |
| Cutting Diameter Minimum (DCN) | 0.2362″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.252″ | Flange Diameter (DF) | 0.63″ |
| Overall Length (OAL) | 3.026″ | Unit | I |
Product Features

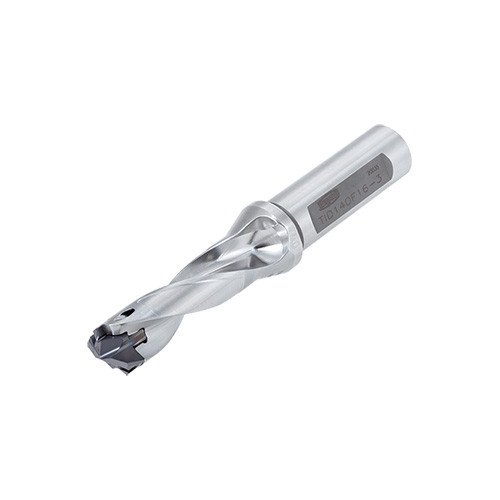

| Family Description | DrillMeister Indexable head drill with flanged shank | COO | JAPAN |
| Remarks | Note: An overall length depends on the type of drill head which is mounted on. |
Shipping Info
Weight per item
0.1940
