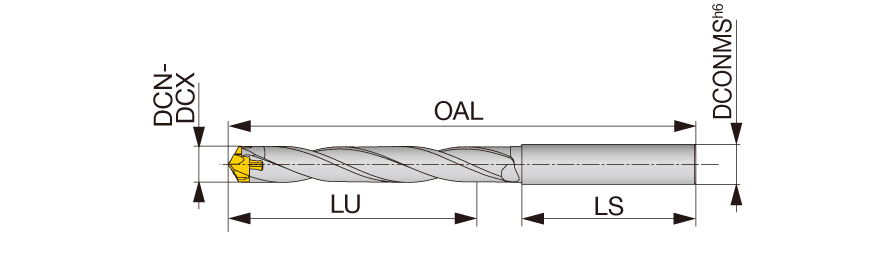

| Usable Length (LU) | 2.677″ | Overall Length (OAL) | 5.513″ |
| Application | | General Drilling | | Shank Length (LS) | 2.362″ |
| Tool Type | indexable head drills | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.472″ | Master Insert Identification (MIID) | DMP100 |
| Insert Seat Size Code (SSC) | 10 | Point Length (PL) | 0.058″ |
| Cutting Diameter Minimum (DCN) | 0.3937″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.4094″ | Unit | I |
Product Features

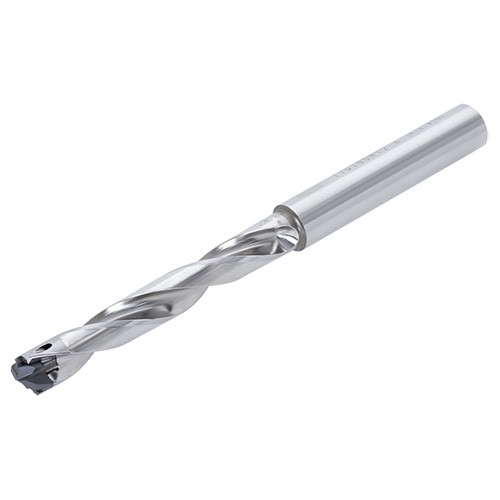

| Family Description | DrillMeister Indexable head drill with cylindrical shank | COO | JAPAN |
| Remarks | Note: An overall length depends on the type of drill head which is mounted on. |
