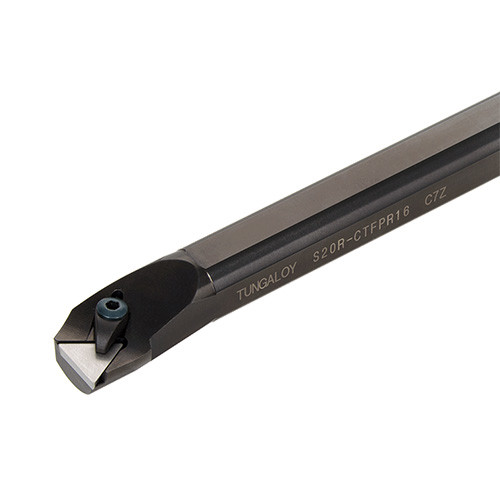

S20R-CTFPR16
Clamp-on boring bar, for posi triangle insert with 11 deg clearance

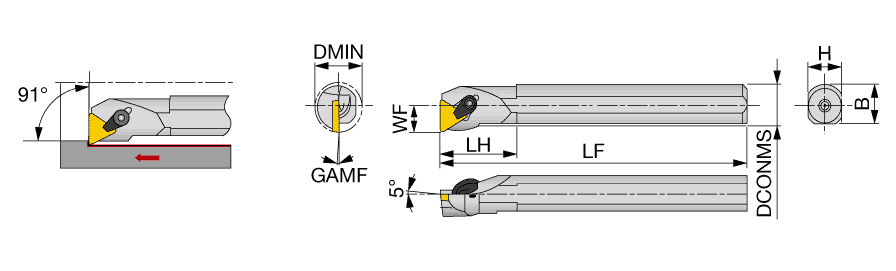

| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | For Triangular insert | |
| Functional Length (LF) | 200 mm | Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 40 mm | Rake Angle Radial (GAMF) | -2 Degrees |
| Shank Height (H) | 18 mm | Tool Type | Internal Indexble -Turn Tool |
| Shank Width (B) | 18.5 mm | Body Material | Steel |
| Functional Width (WF) | 13 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | TPMT160308 | Unit | M |
| Minimum Bore Diameter (DMIN) | 25 mm |
Product Features
| Family Description | Clamp-on boring bar, for posi triangle insert with 11 deg clearance | FamilyName | S/C-CTFPR/L |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the right hand toolholders (CTFPR** type), and the left hand insert (L) is used forthe left hand toolholders (CTFPL** type). For chipbreaker piece, click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.4880
Name
Indexable Internal Turning Tools
FamilyName
S/C-CTFPR/L
BrandName
Tungaloy
Related Documentation

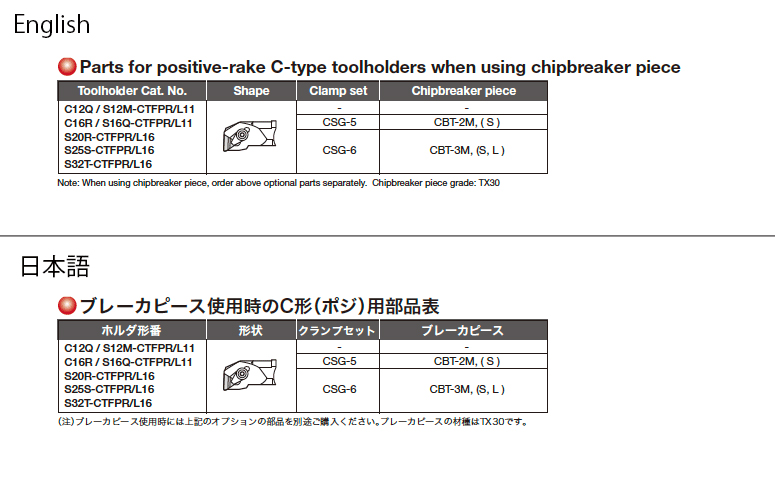

When using chipbreaker piece, order the following optional parts separately.
