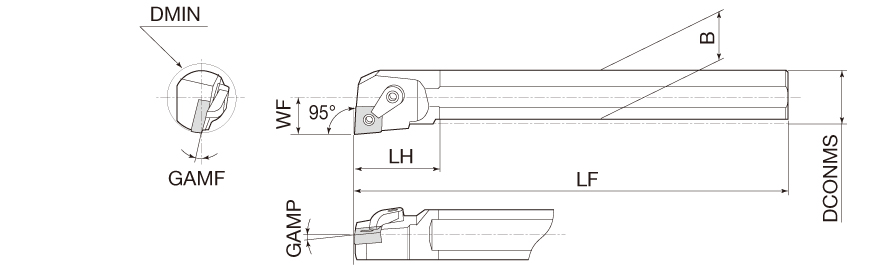

| Connection Diameter Machine Side (DCONMS) | 25 mm | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 200 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Head Length (LH) | 40 mm | Rake Angle Radial (GAMF) | -12 Degrees |
| Shank Height (H) | 23 mm | Tool Type | Internal Indexble -Turn Tool |
| Shank Width (B) | 22.5 mm | Body Material | Steel |
| Functional Width (WF) | 17 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | CNMG120408 | Unit | M |
| Minimum Bore Diameter (DMIN) | 32 mm |
Product Features

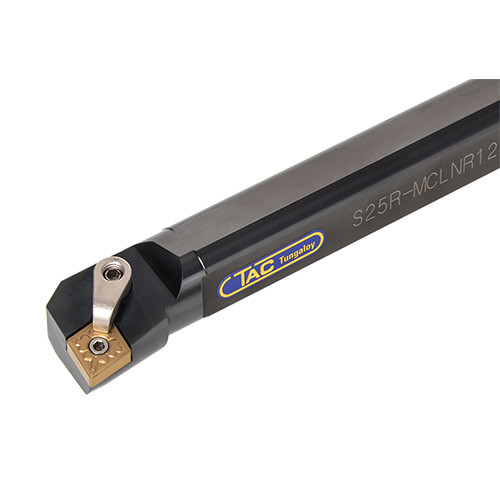

| Family Description | Multi-clamp boring bar, for negative 80 deg rhombic insert | FamilyName | S-MCLNR/L |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (MCLNL** type), and the left hand insert (L) is used for the right hand toolholders (MCLNR** type). | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.7370
Name
Indexable Internal Turning Tools
FamilyName
S-MCLNR/L
BrandName
Tungaloy
