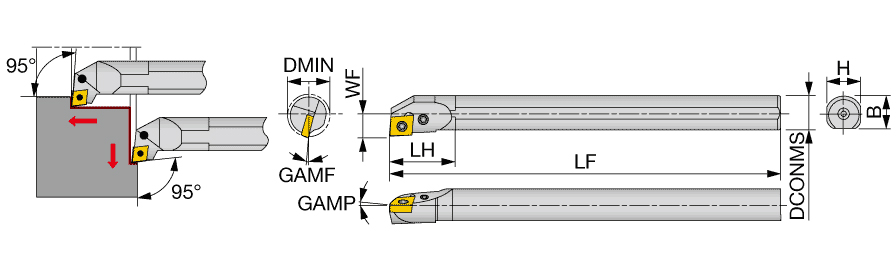

| Connection Diameter Machine Side (DCONMS) | 32 mm | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 250 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Head Length (LH) | 50 mm | Rake Angle Radial (GAMF) | -11 Degrees |
| Shank Height (H) | 30 mm | Tool Type | Internal Indexble -Turn Tool |
| Shank Width (B) | 29.5 mm | Body Material | Steel |
| Functional Width (WF) | 22 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | CNMG120408 | Unit | M |
| Minimum Bore Diameter (DMIN) | 40 mm |
Product Features

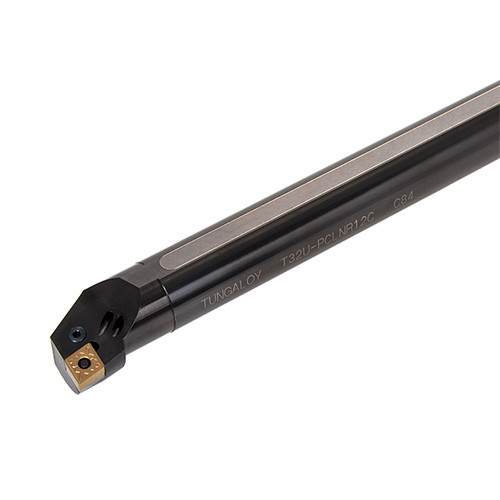

| Family Description | Lever-lock boring bar, for negative 80 deg rhombic insert | FamilyName | S-PCLNR/L |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (PCLNL** type), and the left hand insert (L) is used for the right hand toolholders (PCLNR** type). Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.4800
Name
Indexable Internal Turning Tools
FamilyName
S-PCLNR/L
BrandName
Tungaloy
