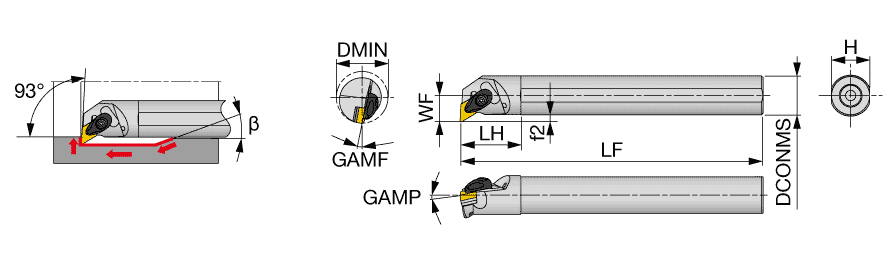

| Connection Diameter Machine Side (DCONMS) | 40 mm | Application | | For 55deg Rhombic insert | |
| Functional Length (LF) | 300 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Head Length (LH) | 55 mm | Rake Angle Radial (GAMF) | -8 Degrees |
| Shank Height (H) | 37 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 27 mm | Body Material | Steel |
| Master Insert Identification (MIID) | DNMG150408 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 50 mm | Unit | M |
Product Features

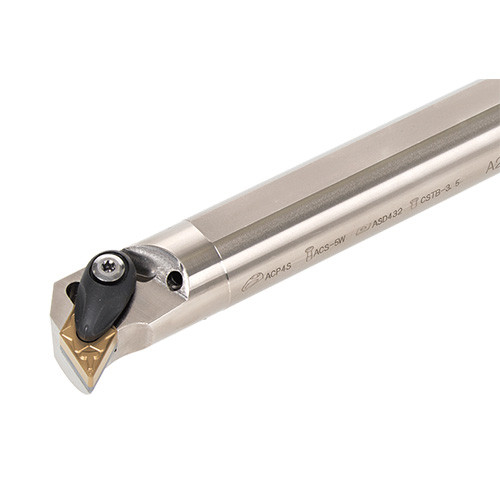

| Family Description | Double-clamp boring bar, for negative 55 deg rhombic inserts. | FamilyName | A-ADUNR/L |
| Remarks | Torque:Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
2.5400
Name
Indexable Internal Turning Tools
FamilyName
A-ADUNR/L
BrandName
Tungaloy
