S16-TLANL12-D34
Screw-on clamp toolholder with tangential insert for roughing operation
Price: Log in For Price

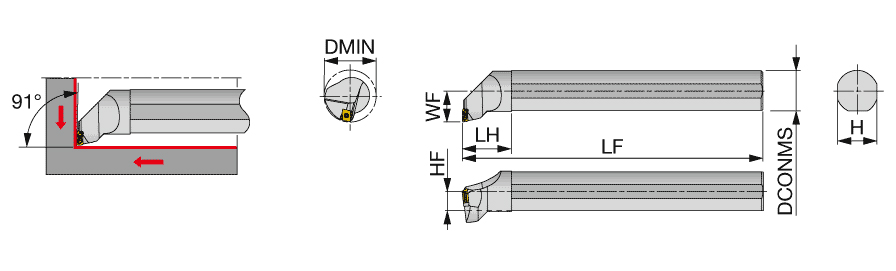

| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | For Rectangular insert | |
| Functional Length (LF) | 12″ | Rake Angle Axial (GAMP) | -14 Degrees |
| Head Length (LH) | 1-1/2″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Shank Height (H) | 0.92″ | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 0.67″ | Body Material | Steel |
| Master Insert Identification (MIID) | LNMX120408R | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 2.09″ | Unit | I |
Product Features
| Family Description | Screw-on clamp toolholder with tangential insert for roughing operation | FamilyName | S-TLANR/L |
| Remarks | The right hand insert (R) is used for the left hand toolholders (TLANL** type), and the left hand insert (L) is used for the right hand toolholders (TLANR** type). | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
Indexable Internal Turning Tools
FamilyName
S-TLANR/L
BrandName
Tungaloy
