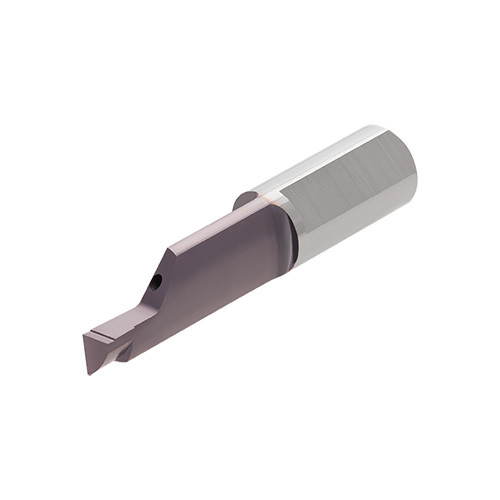

JBFR07210200-D080 SH725

Name: JBFR07210200-D080 SH725
Brand: TinyMiniTurn Int.turning
SKU: TUN6923600
Price: 82.25 USD
Availability: InStock

Item # TUN6923600

Brand: Tungaloy

Mfr#: 6923600

UNSPSC: 23241614

Price: Log in For Price

Quantity Available

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

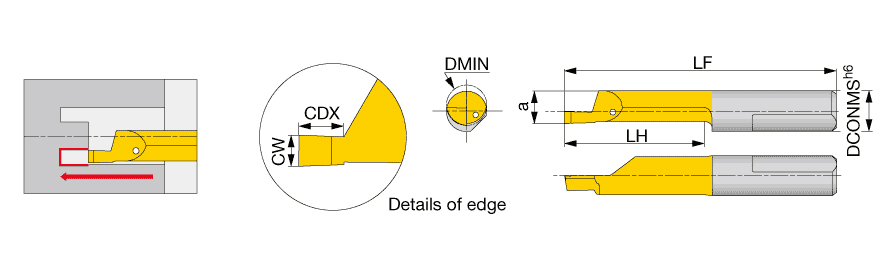

Connection Diameter Machine Side (DCONMS)

7 mm

Front End Width (a)

5.9 mm

Minimum Bore Diameter (DMIN)

8 mm

Functional Width (WF)

2.4 mm

Functional Length (LF)

36 mm

Body Material

Carbide

Head Length (LH)

21 mm

Cutting Edge Material

Carbide

Cutting Direction (HAND)

Right Hand

Tool Type

Solid, Turning & Grooving

Coating

TiAlN

Measurement Type

Metric

Grade

SH725

Cutting Width (CW)

2 mm

Application

| Face grooving |

Unit

Applicable Material

Product Features

Family Description

Solid boring bars for face grooving

FamilyName

JBFR/L

Remarks

Corner radius is less than 0.1 mm.

BrandName

Tungaloy

COO

JAPAN

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Shipping Info

Weight per item

0.0000

Name

Solid Boring Bars
