TID140L40A90M12

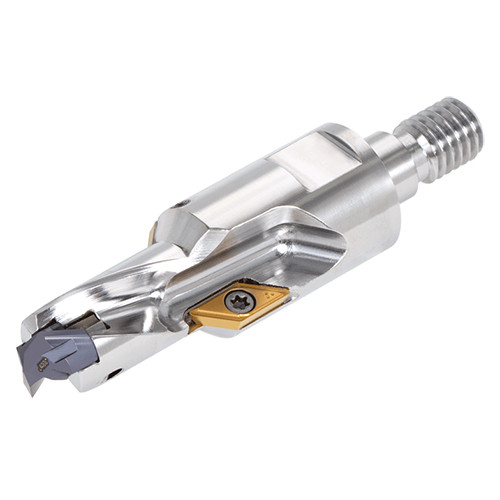

DrillMeister Modular body with chamfering insert, with TungFlex connection. Dedicated line up for pre-thread drilling of metric and UNF threads
Price: Log in For Price

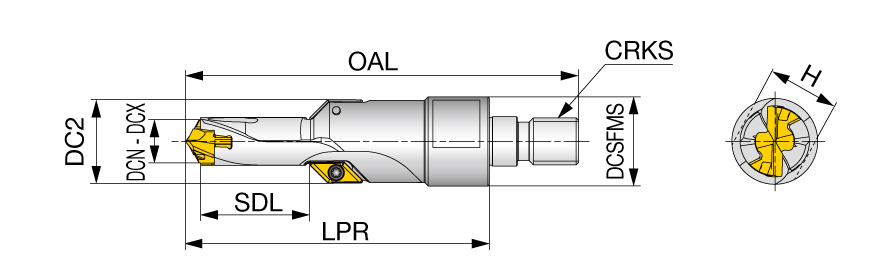

| Application | | Chamfering | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | indexable head drills | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 14 | Master Insert Identification (MIID) | DMP140 |
| Cutting Diameter Minimum (DCN) | 0.5512″ | Point Length (PL) | 0.083″ |
| Cutting Diameter Maximum (DCX) | 0.5669″ | Body Material | Steel |
| Overall Length (OAL) | 4.217″ | Flange Diameter (DF) | 0.925″ |
| Shank Length (LS) | 0.866″ | Unit | I |
Product Features
| Family Description | DrillMeister Modular body with chamfering insert, with TungFlex connection. Dedicated line up for pre-thread drilling of metric and UNF threads | COO | JAPAN |

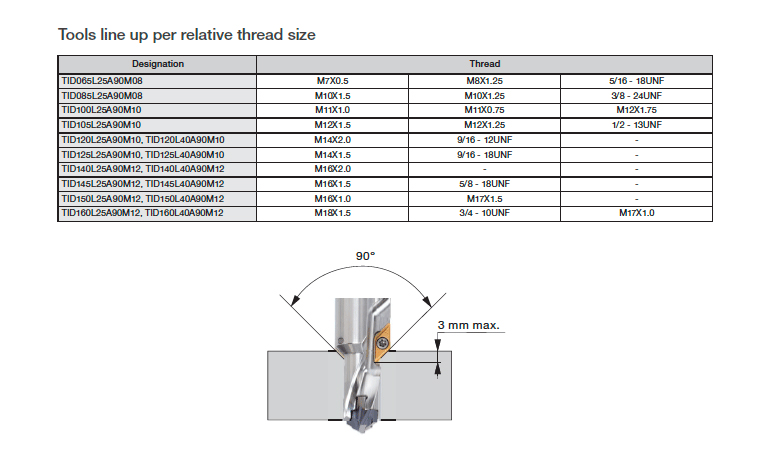

| Remarks | For tools line up per relative thread size, click on "More Info". |
Shipping Info
Weight per item
0.0000
