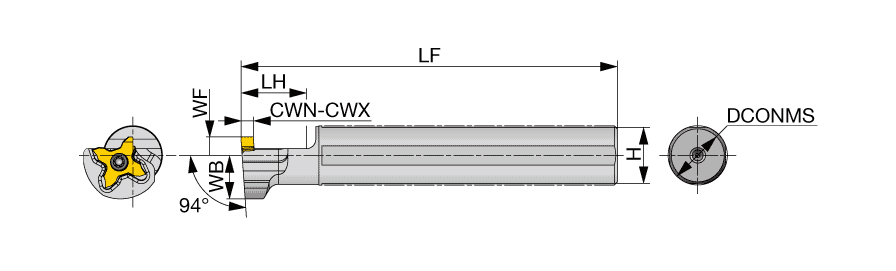

| Cutting Width Minimum (CWN) | 0.33 mm | Connection Diameter Machine Side (DCONMS) | 20 mm |
| Cutting Width Maximum (CWX) | 3.18 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 3.5 mm | Application | | Ext Threading | External grooving | |
| Shank Height (H) | 19 mm | Body Material | Steel |
| Functional Width (WF) | 6 mm | Tool Type | TOOLHOLDERS - ROUND SHANK |
| Functional Length (LF) | 90 mm | Measurement Type | Metric |
| Head Length (LH) | 20 mm | Unit | M |
Product Features

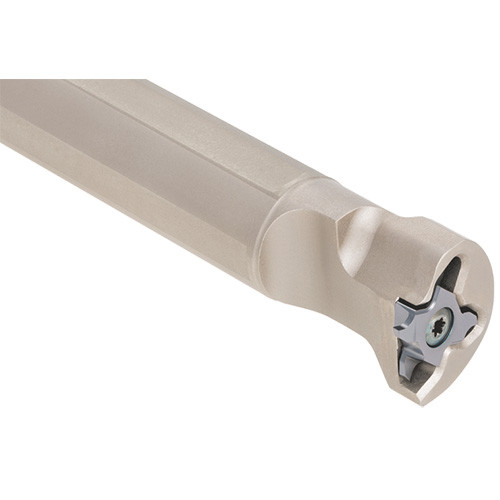

| Family Description | Precision grooving tools with uniquely shaped insert for Swiss type machine, automatic and general lathes, Round shank | FamilyName | JS-STCL18 |
| Remarks | The right hand insert (TC*18R...) is used for the left hand toolholders (JS** STCL...). Torque: Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.2350
Name
Groove/Turn Indexable Holders
FamilyName
JS-STCL18
BrandName
Tungaloy
