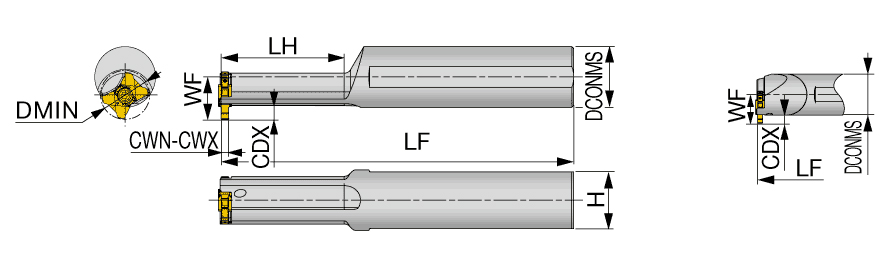

| Cutting Width Minimum (CWN) | 0.5 mm | Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Width Maximum (CWX) | 3 mm | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 11 mm | Application | | Internal grooving | |
| Minimum Bore Diameter (DMIN) | 10.5 mm | Body Material | Steel |
| Functional Width (WF) | 8.3 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Length (LF) | 100 mm | Measurement Type | Metric |
| Head Length (LH) | 25 mm | Unit | M |
Product Features

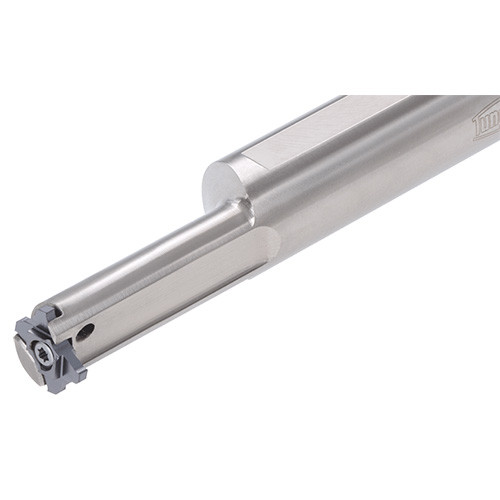

| Family Description | Internal grooving toolholder | FamilyName | A/E-STCIR/L |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Holders
FamilyName
A/E-STCIR/L
BrandName
Tungaloy
