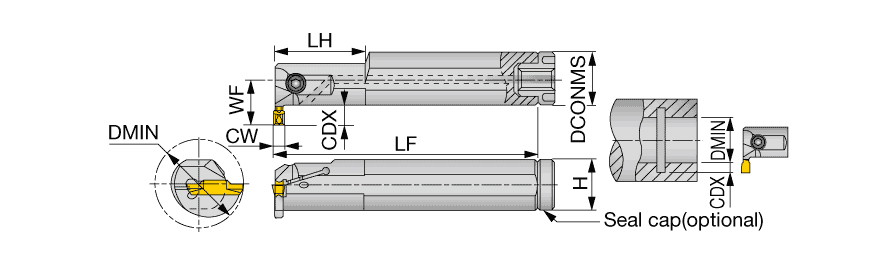

| Cutting Width Minimum (CWN) | 0.138″ | Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Width Maximum (CWX) | 0.177″ | Cutting Direction (HAND) | Left Hand |
| Shank Height (H) | 0.906″ | Application | | Internal grooving | |
| Minimum Bore Diameter (DMIN) | 1-1/4″ | Body Material | Steel |
| Functional Width (WF) | 0.846″ | Tool Type | Indexable Turn & Groov Tools |
| Functional Length (LF) | 8″ | Measurement Type | Inch |
| Head Length (LH) | 1.575″ | Unit | I |
Product Features

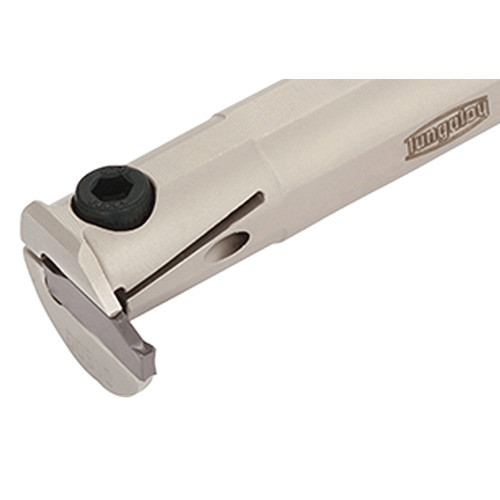

| Family Description | Boring bar for Internal grooving & turning | FamilyName | CTIR/L |
| Remarks | For "DMIN (Minimum bore diameter)", click on "More Info". Torque: Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.6513
Name
Groove/Turn Indexable Holders
FamilyName
CTIR/L
BrandName
Tungaloy
Related Documentation

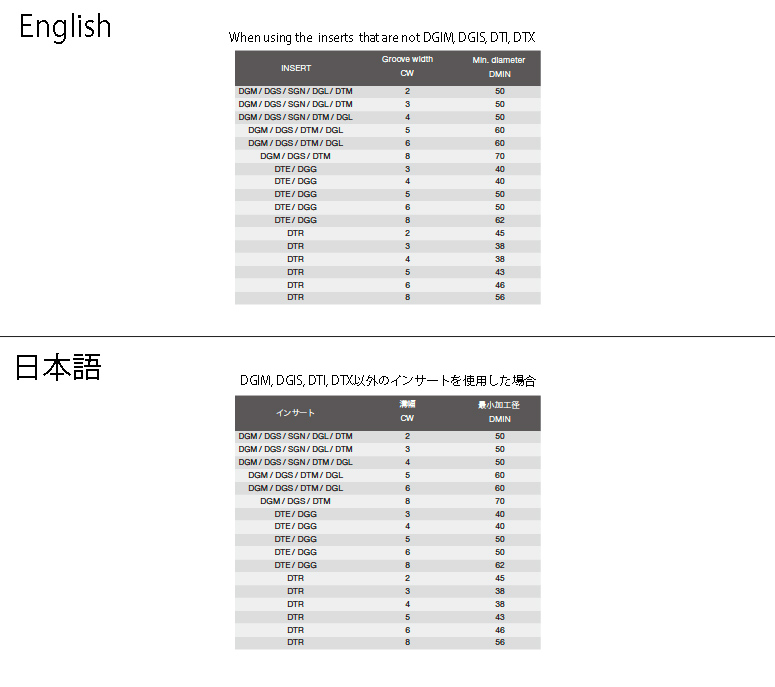

When using the inserts that are not DGIM, DGIS, DTI and DTX, insert geometry limits "DMIN (Minimum bore diameter)".
