QC16-JCTER1.4D20-CHP

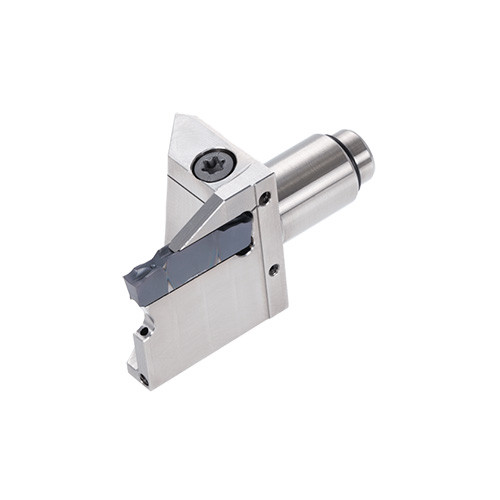

Modular head for external grooving and parting, with high pressure coolant capability
Price: Log in For Price

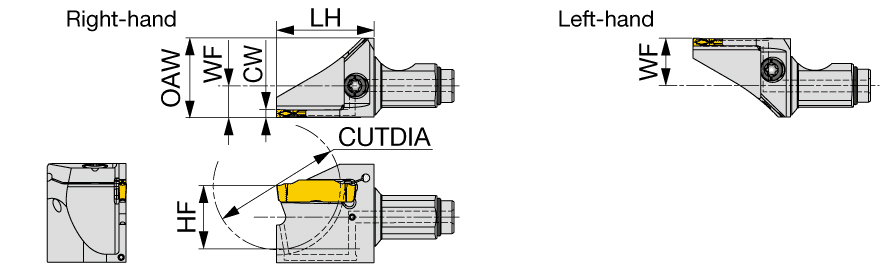

| Cutting Width Minimum (CWN) | 0.055″ | Head Length (LH) | 0.965″ |
| Cutting Width Maximum (CWX) | 0.055″ | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 0.63″ | Application | | External grooving | Parting off | |
| Shank Width (B) | 0.63″ | Body Material | Steel |
| Functional Width (WF) | 0.315″ | Measurement Type | Inch |
| Functional Length (LF) | 0.803″ | Unit | I |
Product Features
| Family Description | Modular head for external grooving and parting, with high pressure coolant capability | FamilyName | QC-JCTER/L-CHP |
| Remarks | Through coolant head. For using internal coolant, please select both a through coolant head and a through coolant shank. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Holders
FamilyName
QC-JCTER/L-CHP
BrandName
Tungaloy
