‎DGS3-020 AH7025

Name: DGS3-020 AH7025
Brand: TungCut
SKU: TUN6745869
Price: 33.25 USD
Availability: InStock

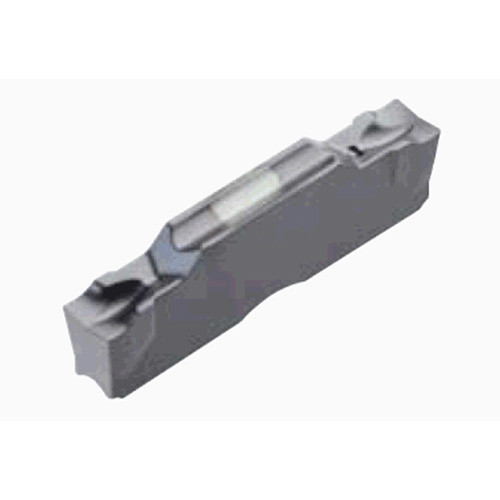

Double-ended inserts with low cutting force chipbreaker, for external grooving & parting, tolerance of insert width +-0.002 inch

Item # TUN6745869

Brand: Tungaloy

Mfr#: 6745869

Quantity Available

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

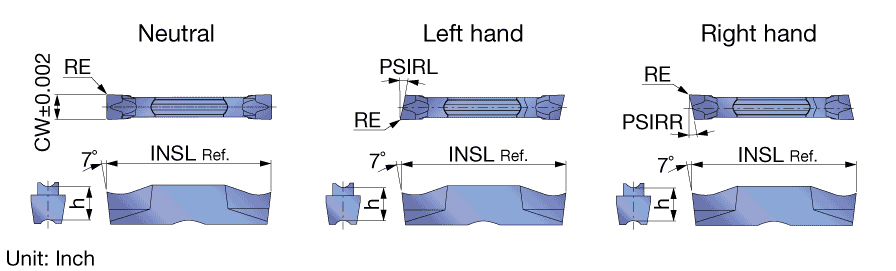

Cutting Width (CW)

0.118″

Applicable Material

| Steel | Stainless Steel | Super-Alloys / Titanium |

Corner Radius (RE)

0.0079″

Cutting Edge Angle Major Left Hand (PSIRL)

0 Degrees

Insert Length (INSL)

0.787″

Tool Type

Face Turn-Groove Inserts

Cutting Edge Material

Carbide

Work Piece Parting Diameter Maximum (CUTDIA)

1.417″

Coating

TiAlN

Measurement Type

Inch

Grade

AH7025

Body Material

Carbide

Application

| Inserts |

Unit

Product Features

Family Description

Double-ended inserts with low cutting force chipbreaker, for external grooving & parting, tolerance of insert width +-0.002 inch

FamilyName

DGS

Remarks

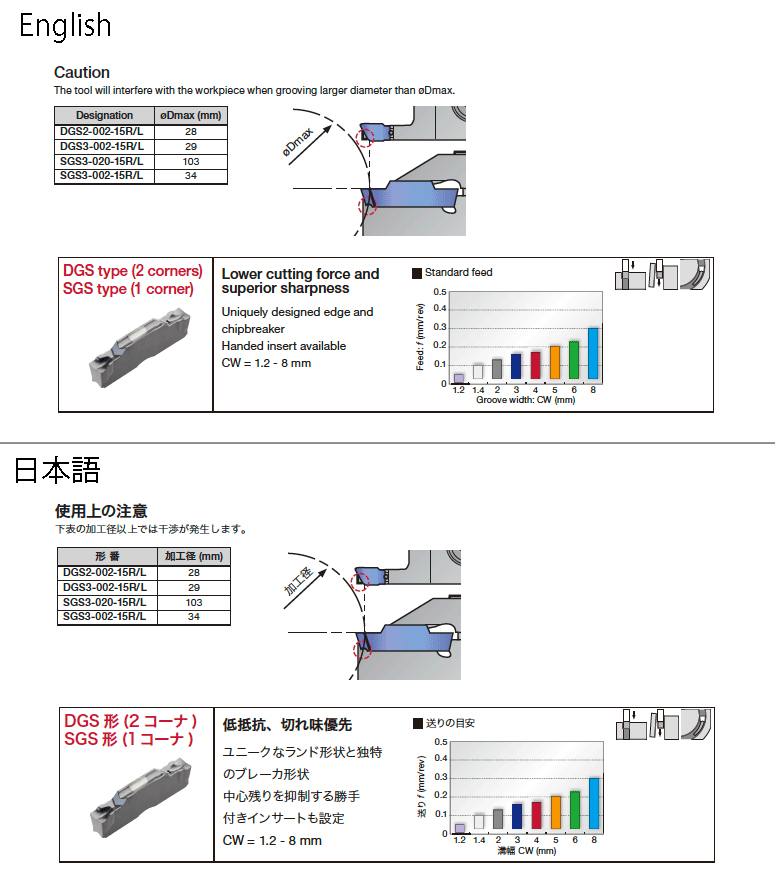

For "Max workpiece diameter" and "Standard cutting conditions", click on "More Info".

BrandName

Tungaloy

COO

JAPAN

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Shipping Info

Weight per item

0.0992

Name

Parting Off Indexable Inserts
