See all 15 in this Product Family

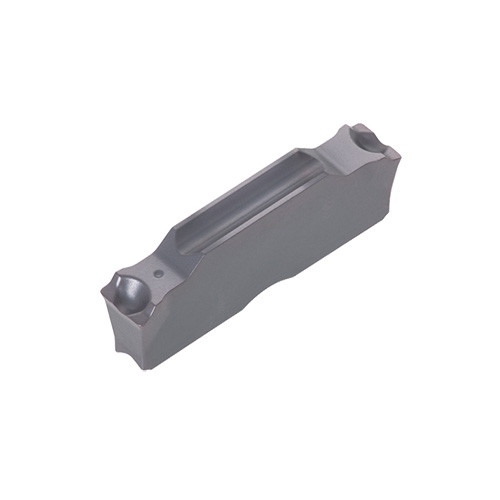

‎DGL2-020 AH7025

Name: DGL2-020 AH7025
Brand: TungCut
SKU: TUN6795320
Price: 31.40 USD
Availability: InStock

Item # TUN6795320

Brand: Tungaloy

Mfr#: 6795320

UNSPSC: 23242105

Price: Log in For Price

Quantity Available

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

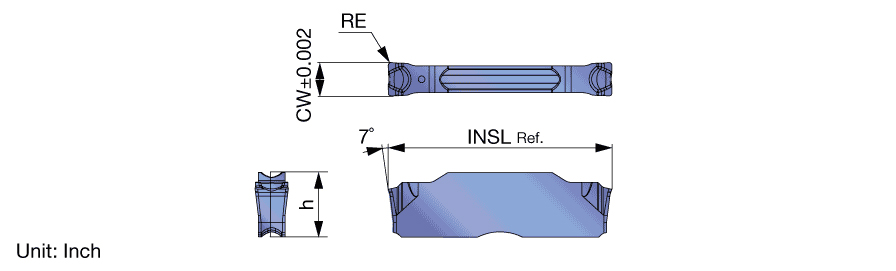

Cutting Width (CW)

0.079″

Applicable Material

| Steel | Stainless Steel | Super-Alloys / Titanium |

Corner Radius (RE)

0.0079″

Tool Type

Face Turn-Groove Inserts

Insert Length (INSL)

0.787″

Work Piece Parting Diameter Maximum (CUTDIA)

1.417″

Cutting Edge Material

Carbide

Measurement Type

Inch

Coating

TiAlN

Body Material

Carbide

Grade

AH7025

Unit

Application

| Inserts |

Product Features

Family Description

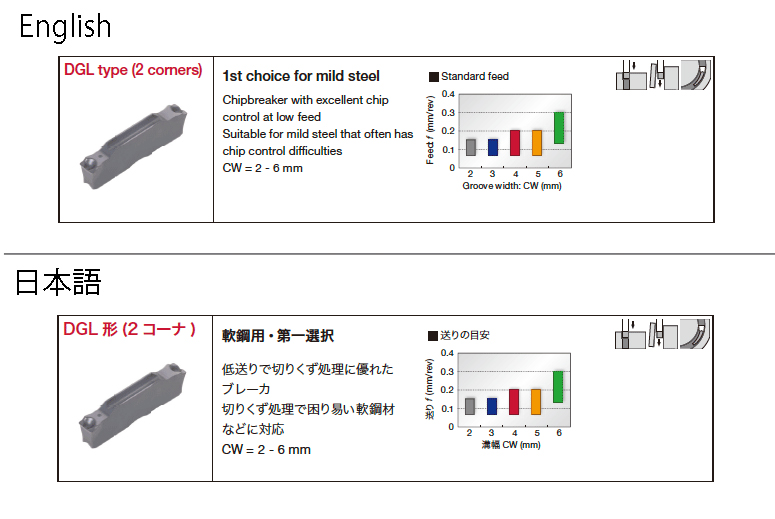

‎Double-ended inserts for external / face grooving & parting, 1st choice for low carbon steel, tolerance of insert width +/-0.002 inch

FamilyName

DGL

Remarks

For "Standard cutting conditions", click on "More Info".

BrandName

Tungaloy

COO

JAPAN

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Shipping Info

Weight per item

0.0000

Name

Parting Off Indexable Inserts
