‎DGE160-010 AH725

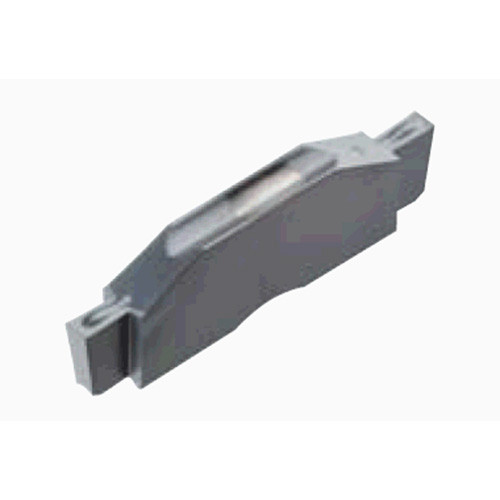

Name: DGE160-010 AH725
Brand: TungCut
SKU: TUN6860546
Price: 37.80 USD
Availability: InStock

Item # TUN6860546

Brand: Tungaloy

Mfr#: 6860546

UNSPSC: 23242105

Price: Log in For Price

Quantity Available

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

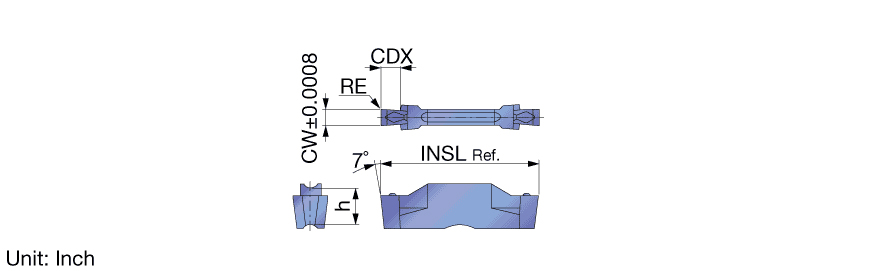

Cutting Width (CW)

0.063″

Applicable Material

Corner Radius (RE)

0.0039″

Tool Type

Face Turn-Groove Inserts

Insert Length (INSL)

0.787″

Work Piece Parting Diameter Maximum (CUTDIA)

0.157″

Cutting Edge Material

Carbide

Measurement Type

Inch

Coating

TiAlN

Body Material

Carbide

Grade

AH725

Unit

Application

| Inserts |

Product Features

Family Description

Precision double-ended inserts for external shallow grooving, tolerance of insert width +-0.0008 inch

FamilyName

DGE

Remarks

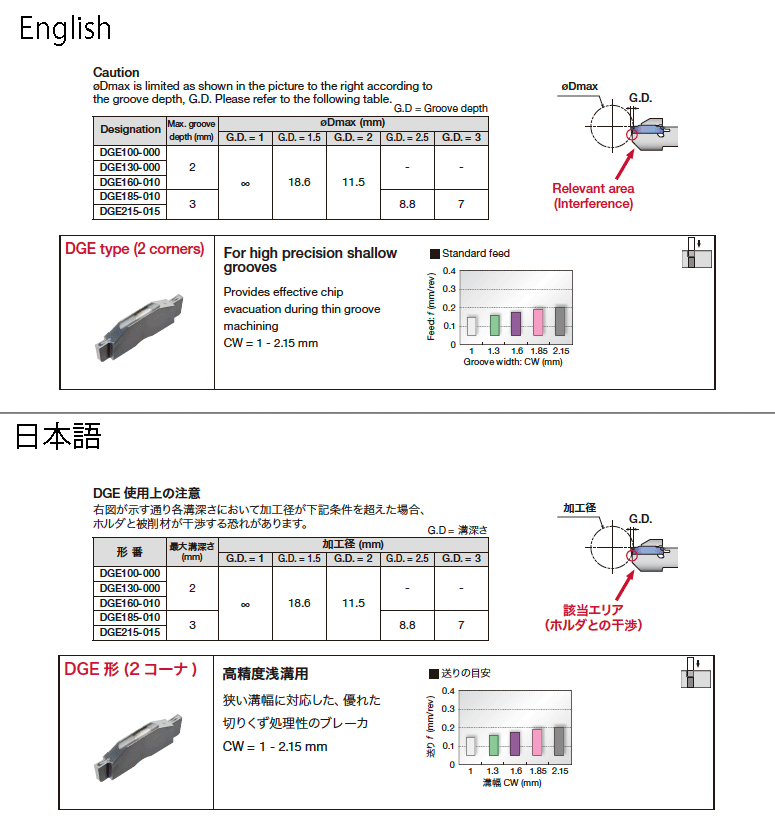

For "Max workpiece diameter" and "Standard cutting conditions", click on "More Info".

BrandName

Tungaloy

COO

SOUTH KOREA

Warning-Proposition 65- For Californian Users only

WARNING: This product contains a chemical known to the State of California to cause cancer or Birth defects. For more information go to www.P65Warnings.ca.gov

Shipping Info

Weight per item

0.0860

Name

Parting Off Indexable Inserts
