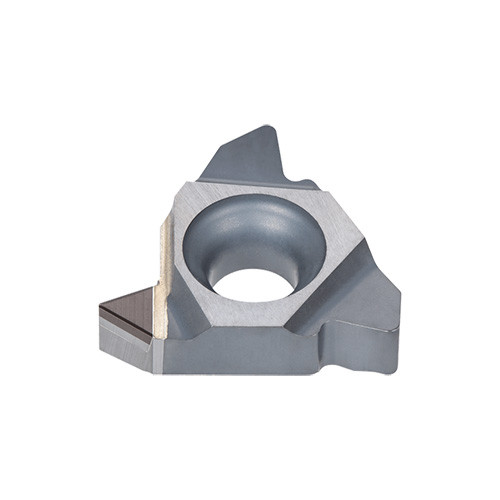

1QP-16ER60-014-SP BX330
External 60 deg, Partial profile, CBN threading insert
Price: Log in For Price

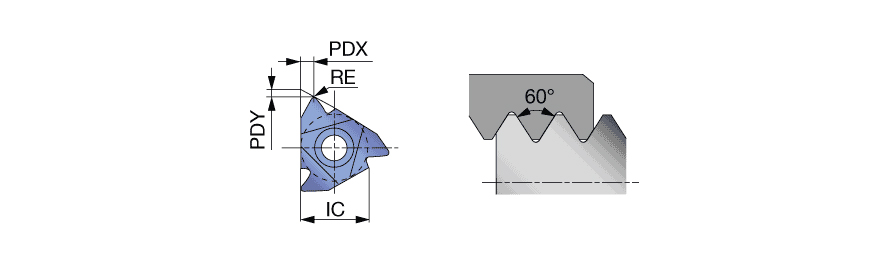

| Inscribed Circle Diameter (IC) | 3/8″ | Threads per Inch Minimum (TPIN) | 13 |
| Corner Radius (RE) | 0.0055″ | Threads per Inch Maximum (TPIX) | 20 |
| Grade | BX330 | Thread Pitch Minimum (TPN) | 1 mm |
| Coating | Uncoated | Thread Pitch Maximum (TPX) | 2 mm |
| Cutting Edge Material | PCBN | Tool Type | Threading Regular Inserts |
| Application | | Inserts | | Measurement Type | Inch |
| Applicable Material | | Hard Materials | | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Unit | I |
| Cutting Item Count (CICT) | 1 | Profile Distance EY (PDY) | 0.028″ |
Product Features
| Family Description | External 60 deg, Partial profile, CBN threading insert | BrandName | Tungaloy |
| COO | JAPAN | ||
| FamilyName | 1QP-ER-60 |
Shipping Info
Weight per item
0.0000
Name
Laydown Threading Indexable Inserts
FamilyName
1QP-ER-60
BrandName
Tungaloy
