| Corner Radius (RE) | 0.002″ | Thread Pitch Minimum (TPN) | 0.5 mm |
| Insert Thickness (S) | 1/8″ | Thread Pitch Maximum (TPX) | 1 mm |
| Inscribed Circle Diameter (IC) | 3/8″ | Tool Type | Threading Regular Inserts |
| Grade | SH725 | Threads per Inch Maximum (TPIX) | 48 |
| Coating | TiAlN | Threads per Inch Minimum (TPIN) | 25 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Inserts | | Unit | I |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
Product Features
| Family Description | External 55 deg, Partial profile, Pitch 0.5 to 1mm | FamilyName | JTTR/L-55 |
| Remarks | "F" included in designation means sharp edge. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.1235
Name

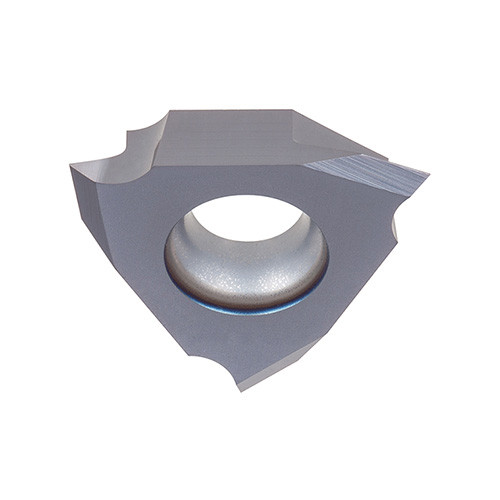

On-Edge Threading Indexable Inserts
FamilyName
JTTR/L-55
BrandName
Tungaloy
