TPV16R150U0075A03

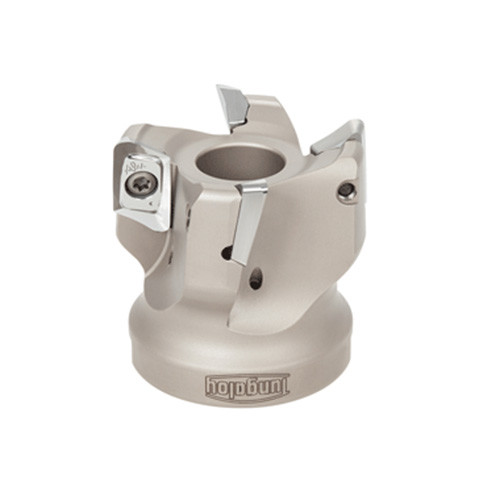

90 deg shoulder milling shellmills with screw clamped XVCT16 inserts for aluminum machining
Price: Log in For Price

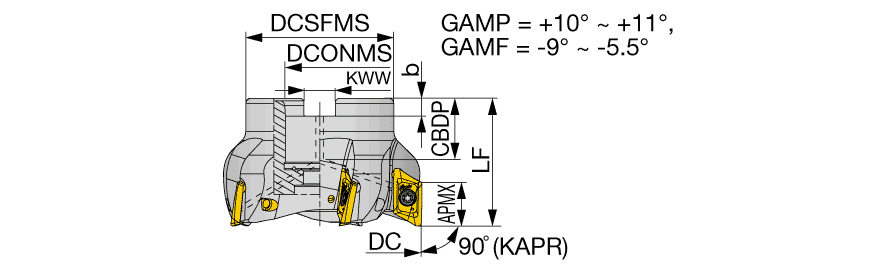

| Cutting Diameter (DC/DCX) | 1-1/2″ | Body Material | Steel |
| Cutting Diameter (DC) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 1-1/2″ | Application | | Shoulder Milling | |
| Cutting Item Count (CICT) | 3 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.63″ | Functional Length (LF) | 2″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | 90 Facemills for Al. & HTA |
| Overall Length (OAL) | 2″ | Unit | I |
| Master Insert Identification (MIID) | XVCT160508R-AJ |
Product Features
| Family Description | 90 deg shoulder milling shellmills with screw clamped XVCT16 inserts for aluminum machining | FamilyName | TPV16 |
| Remarks | Either XVCT AM inserts or XVCT AJ inserts can be used with a TPV/EPV cutter. DO NOT mix the XVCT AM and XVCT AJ inserts on the same cutter. The difference of the insert weights will deteriorate the dynamic balance of the tool, resulting in poor surface finish. | BrandName | Tungaloy |
| COO | SOUTH KOREA |
Shipping Info
Weight per item
0.0000
Name
Indexable Face Mills
FamilyName
TPV16
BrandName
Tungaloy
