TXSW15M160B40.0R08

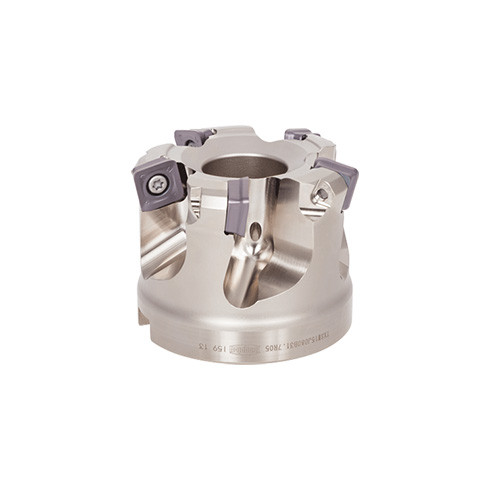

Super high-feed milling cutter with large depth of cut; Bore type
Price: Log in For Price
| Cutting Diameter (DC/DCX) | 160 mm | Body Material | Steel |
| Cutting Diameter (DC) | 160 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 160 mm | Application | | High Feed Milling | |
| Cutting Item Count (CICT) | 8 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 2.5 mm | Functional Length (LF) | 63 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Tool Type | Fast Feed Endmill |
| Overall Length (OAL) | 63 mm | Unit | M |
| Master Insert Identification (MIID) | SWMT1506ZER-MJ |
Product Features
| Family Description | Super high-feed milling cutter with large depth of cut; Bore type | FamilyName | TXSW15 |
| Remarks | APMX may vary with insert type. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
4.9000
Name
Indexable Face Mills
FamilyName
TXSW15
BrandName
Tungaloy
