TPAV12U2.00B0.75R12

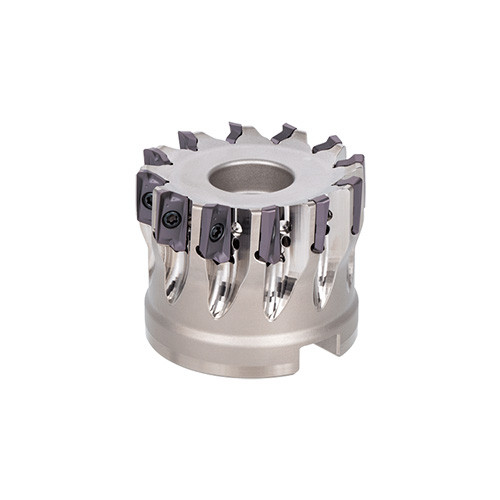

Square shoulder mill, bore type, with screw clamp system

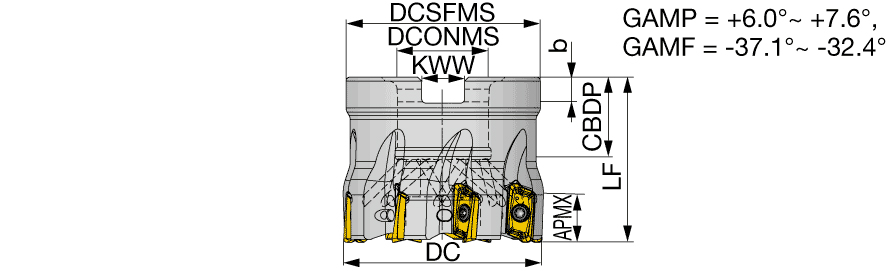

| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | AVMT120408PDER-MM |
| Cutting Diameter (DC) | 2″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 12 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 0.453″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Functional Length (LF) | 1.575″ |
| Overall Length (OAL) | 1.575″ | Unit | I |
Product Features
| Family Description | Square shoulder mill, bore type, with screw clamp system | FamilyName | TPAV12 |
| Remarks | APMX may vary with insert type. For APMX, please refer to insert size table. When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Indexable Face Mills
FamilyName
TPAV12
BrandName
Tungaloy
Related Documentation

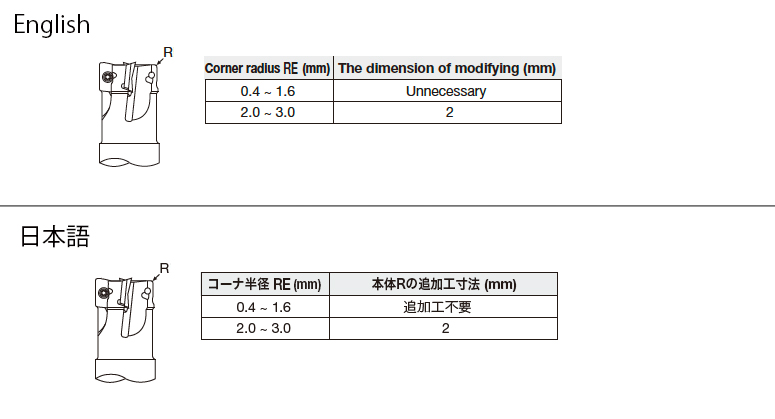

When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
