TAW13R200U0075A05

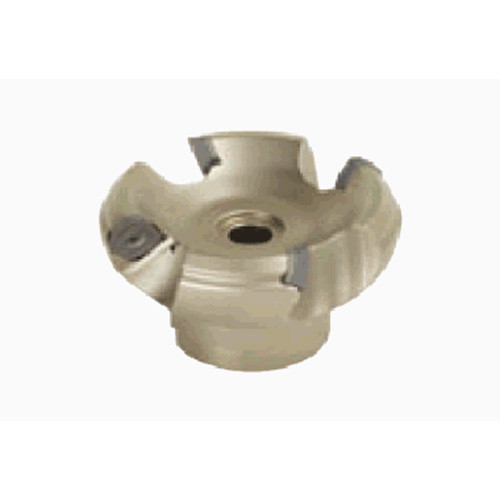

45deg face mills with screw clamped SWMT/SWGT13 inserts.

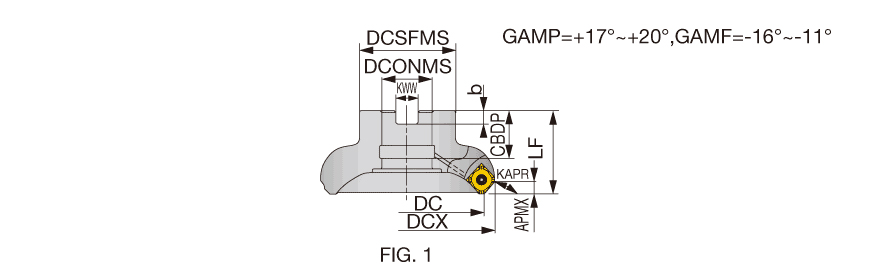

| Cutting Diameter (DC/DCX) | 2.506″ | Body Material | Steel |
| Cutting Diameter (DC) | 2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 2.506″ | Application | | Face Milling | |
| Cutting Item Count (CICT) | 5 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.197″ | Functional Length (LF) | 1.575″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | 45 Facemills |
| Overall Length (OAL) | 1.575″ | Unit | I |

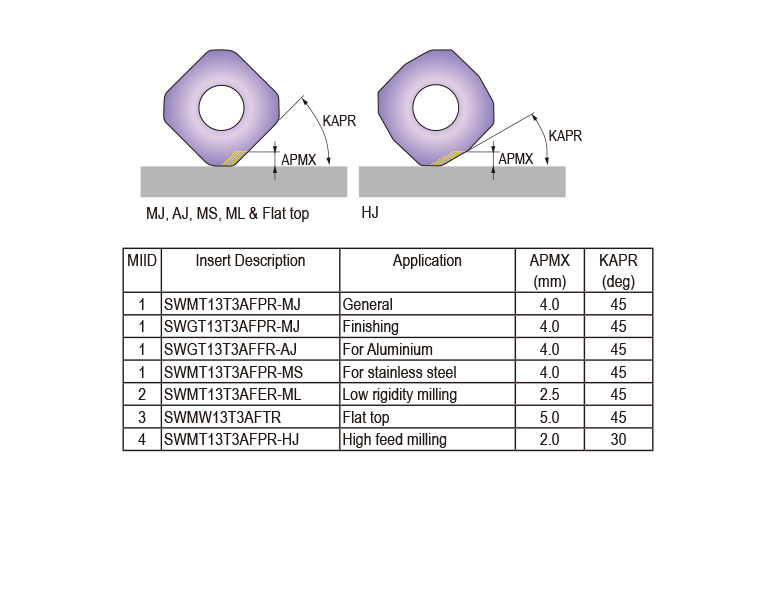

| Master Insert Identification (MIID) | SWMT13T3AFPR-MJ |
Product Features
| Family Description | 45deg face mills with screw clamped SWMT/SWGT13 inserts. | FamilyName | TAW13 |
| Remarks | APMX may vary with insert type. Please see "More info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.4330
Name
Indexable Face Mills
FamilyName
TAW13
BrandName
Tungaloy
