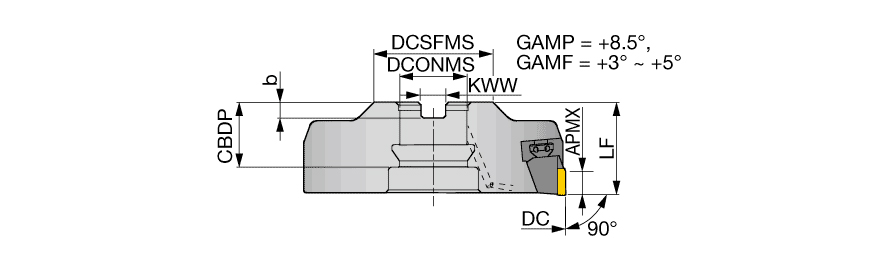

| Cutting Diameter (DC/DCX) | 125 mm | Body Material | Steel |
| Cutting Diameter (DC) | 125 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 125 mm | Application | | Shoulder Milling | |
| Cutting Item Count (CICT) | 10 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 7 mm | Functional Length (LF) | 35 mm |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Tool Type | 90 Facemills for Al. & HTA |
| Overall Length (OAL) | 35 mm | Unit | M |
| Master Insert Identification (MIID) | YDEN0905PDFR-D |
Product Features
| Family Description | Light weight suqare mills with PCD inserts for alminum machining | FamilyName | DPD09 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
2.2200
Name

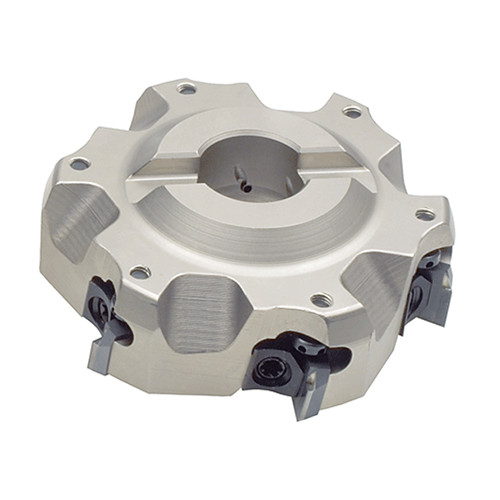

Indexable Face Mills
FamilyName
DPD09
BrandName
Tungaloy
