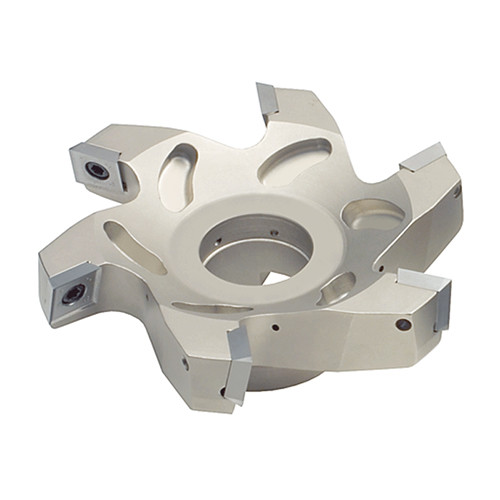

TFE12400RU
85.5 deg face mills with screw clamped inserts for aluminum machining
| Cutting Diameter (DC/DCX) | 6.0669″ | Body Material | Steel |
| Cutting Diameter (DC) | 4″ | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 6.0669″ | Application | | Face Milling | |
| Cutting Item Count (CICT) | 6 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.315″ | Functional Length (LF) | 1.378″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Tool Type | 90 Facemills |
| Overall Length (OAL) | 1.378″ | Unit | I |
| Master Insert Identification (MIID) | SEGW12X4ZEFR |
Product Features
| Family Description | 85.5 deg face mills with screw clamped inserts for aluminum machining | FamilyName | TFE12000R |
| Remarks | APMX may vary with insert type. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
2.2531
Name
Indexable Face Mills
FamilyName
TFE12000R
BrandName
Tungaloy
