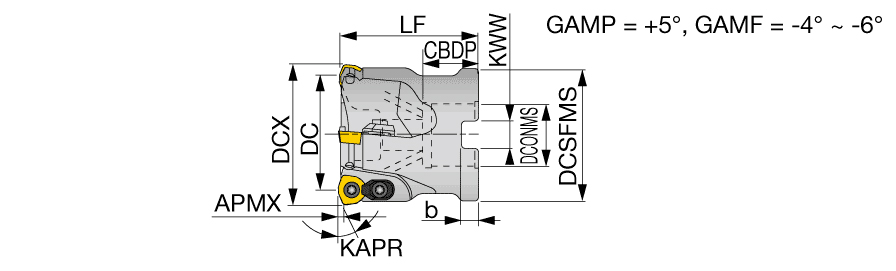

| Cutting Diameter (DC/DCX) | 2-1/2″ | Body Material | Steel |
| Cutting Diameter (DC) | 2-1/2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 2-1/2″ | Application | | High Feed Milling | |
| Cutting Item Count (CICT) | 6 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.06″ | Functional Length (LF) | 1.969″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | Fast Feed Face mill |
| Overall Length (OAL) | 1.969″ | Unit | I |
| Master Insert Identification (MIID) | WPMT05H315ZPR-ML |
Product Features
| Family Description | Super high feed milling cutter | FamilyName | TXP05/06/08/09 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Indexable Face Mills
FamilyName
TXP05/06/08/09
BrandName
Tungaloy
