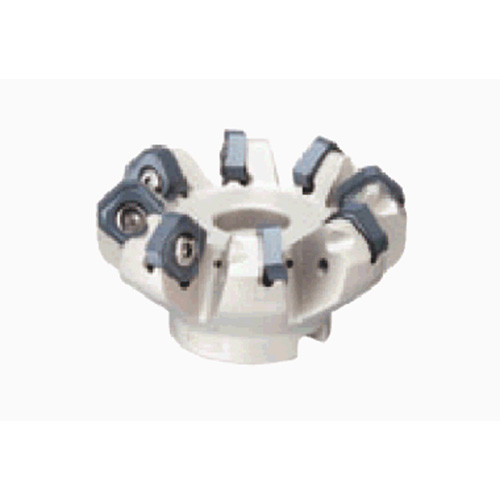

TAN07R250U0075A06
45deg screw clamp type face mills with double sided octagonal or square inserts.
Price: Log in For Price

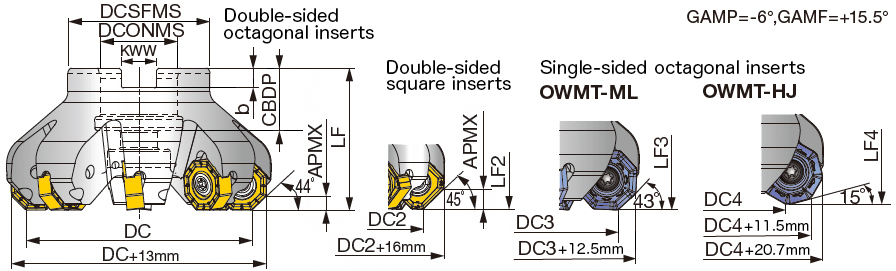

| Cutting Diameter (DC/DCX) | 3.0118″ | Body Material | Steel |
| Cutting Diameter (DC) | 2-1/2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 3.0118″ | Application | | Face Milling | |
| Cutting Item Count (CICT) | 6 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.295″ | Functional Length (LF) | 1-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | 45 Facemills |
| Overall Length (OAL) | 1-3/4″ | Unit | I |
| Master Insert Identification (MIID) | ONMU0705ANPN-MJ |
Product Features
| Family Description | 45deg screw clamp type face mills with double sided octagonal or square inserts. | FamilyName | TAN07 |
| Remarks | APMX may vary with insert type. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.5322
Name
Indexable Face Mills
FamilyName
TAN07
BrandName
Tungaloy
